allis chalmers 5020
 | 1977 - 1985
Compact Utility tractorHinomoto built | 1977 - 1985 | Compact Utility tractor | Hinomoto built |
|---|---|---|---|---|
1977 - 1985 | ||||
Compact Utility tractor | ||||
Hinomoto built | ||||
1977 - 1985 | |
|---|---|
Compact Utility tractor | |
Hinomoto built |
Transmission options | |
|---|---|
8-speed unsynchronized gear | |
12-speed unsynchronized gear |
Transmission | |||
|---|---|---|---|
Type | unsynchronized gear | ||
Gears | 8 forward and 2 reverse | ||
Clutch | 215mm dry disc | ||
Oil capacity | 22 qts
20.8 L | ||
Oil type | Power Fluid 821 | Power Fluid 821 | |
Power Fluid 821 | |||
Four gears, plus reverse, with high and low ranges. The eight-speed appears to only have been available during early production. | |||
Power Fluid 821 |
|---|

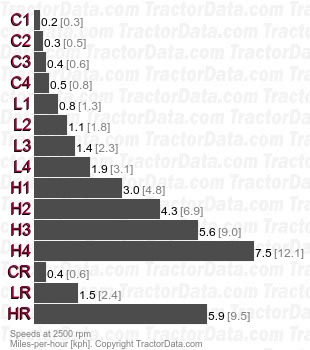

Speeds | |
|---|---|
With 9.5-24 rear tires. | |
 |
Transmission | |||
|---|---|---|---|
Type | unsynchronized gear | ||
Gears | 12 forward and 3 reverse | ||
Clutch | 215mm dry disc | ||
Oil capacity | 22 qts
20.8 L | ||
Oil type | Power Fluid 821 | Power Fluid 821 | |
Power Fluid 821 | |||
Four gears, plus reverse, with high, low, and creeper ranges. The 12-speed is commonly listed as the standard transmission. | |||
Power Fluid 821 |
|---|
Speeds | |
|---|---|
With 11.2x24 rear tires. | |
 |
Shift Pattern | |
|---|---|
 |
 | |
|---|---|
