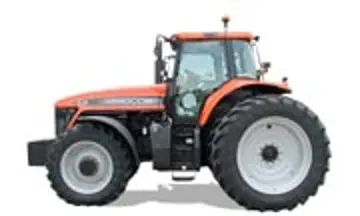

agco dt160
 | 2002 - 2004
DT-Serie Ackerschlepper | 2002 - 2004 | DT-Serie | Ackerschlepper |
|---|---|---|---|---|
2002 - 2004 | ||||
DT-Serie | ||||
Ackerschlepper | ||||
2002 - 2004 | |
|---|---|
DT-Serie | |
Ackerschlepper |
Produktion | |
|---|---|
Hersteller | AGCO |
Ackerschlepper | |
Gebaut in Beauvais, Frankreich | |
AGCO DT160 Motor | |
|---|---|
Cummins 8,3L 6-Zylinder-Diesel | |
Kraftstofftank | 120 Gallonen
454.2 L |
Motordetails ...  | |

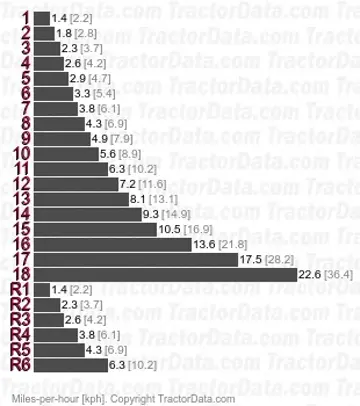

AGCO DT160 Getriebe | |
|---|---|
18-Gang-Leistungsschaltung | |
Getriebe Details ...  |
AGCO DT160 Power | |
|---|---|
Zwillingskupplung (angegeben) | 160 PS
119,3 kW |
Anhängevorrichtung (geprüft) | 142,58 PS
78,6 kW |
Kraftübertragung (geprüft) | 164,38 PS
91,0 kW |

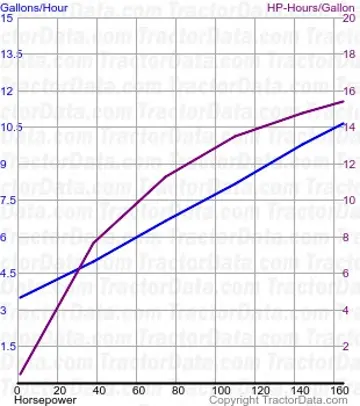

Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Allradantrieb | |
Servolenkung | |
Hydraulische Scheibenbremsen | |
Kabinenstandard. |
Hydraulik | |
|---|---|
Typ | geschlossenes Mittelzentrums-Druckflusskompensiert (PFC) |
Druck | 2900 psi
200,0 bar |
Ventile | 4 |
Pumpenleistung | 29 gpm
109,8 lpm |
| 39 gpmOptional
147,6 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | 3/3N |
Heckhub (bei 24"/610mm) | 16.000 lbs
7257 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 121 Zoll
307 cm |
Gewicht | 18.500 lbs
8391 kg |
Vollständige Abmessungen und Reifen ...  | |
AGCO DT160 Anbauteile | |
|---|---|
Frontlader | |
Befestigungsdetails ...  |
DT160 Seriennummern | |
|---|---|
2002 | L001001 |
2003 | M001001 |
2004 | N001001 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |

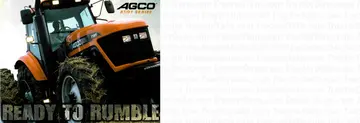

RT/DT-Serie - Bereit zum Rumblen, veröffentlicht im Jahr 2001 von AGCO |
