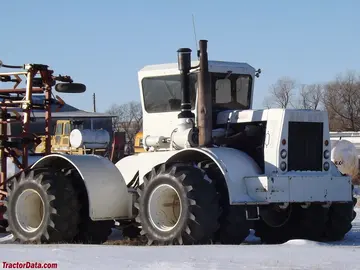

big bud hn320
 | 1976 - 1978
HN-Serie Allradtraktor | 1976 - 1978 | HN-Serie | Vierradantriebs-Traktor (4WD) |
|---|---|---|---|---|
1976 - 1978 | ||||
HN-Serie | ||||
Vierradantriebs-Traktor (4WD) | ||||
1976 - 1978 | |
|---|---|
HN-Serie | |
Vierradantriebs-Traktor (4WD) |
Produktion | |
|---|---|
Hersteller | Großer Knospe |
Vierradantriebs-Traktor (4WD) | |
Gebaut in Havre, Montana, USA | |
Big Bud HN320 Motor | |
|---|---|
Cummins 14,0-Liter-6-Zylinder-Diesel | |
Kraftstofftank | 525 Gallonen
1987,1 Liter |
Motordetails ...  | |
Großer Bud HN320 Getriebe | |
|---|---|
12-Gang-Getriebe | |
Getriebe Details ...  |
Big Bud HN320 Power | |
|---|---|
Motor | 320 PS
176,9 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Lenkung | hydrostatische Kraft |
Kabinenstandard. | |
Fotos | |
|---|---|
 | |
Big Bud HN320 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Pumpenleistung | 20 gpm
75,7 lpm |
Gesamtstrom | 40 gpm
151,4 lpm |
Lenkungsfluss | 20 gpm
75,7 lpm |
Abmessungen & Reifen | |
|---|---|
Gewicht | 36000 lbs
16329 kg |
Vorderreifen | 23.1x30 |
Hinterreifen | 23.1x30 |
Vollständige Abmessungen und Reifen ...  | |
Referenzen | |
|---|---|
 | |
Big Bud wurde 1976 veröffentlicht |
