bolens lawn tractors 3011h
![]() | 1985
Suburban Serie Garten Traktor | 1985 | Vorstadt-Serie | Gartenfahrzeug |
|---|---|---|---|---|
1985 | ||||
Vorstadt-Serie | ||||
Gartenfahrzeug | ||||
1985 | |
|---|---|
Vorstadt-Serie | |
Gartenfahrzeug |
Produktion | |
|---|---|
Hersteller | Bolens |
Gartenfahrzeug | |
Gebaut in Port Washington, Wisconsin, USA | |
Varianten | |
|---|---|
3011G | Gang |
3011H | hydrostatisch |
Bolens 3011H Motor | |
|---|---|
11 PS Briggs & Stratton 399cc 1-Zylinder-Benzinmotor | |
Kraftstofftank | 5 gal
18,9 L |
Motordetails ... | |
Bolens 3011H Getriebe | |
|---|---|
hydrostatisch | |
Getriebe Details ... |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Scheibenbremsen | |
Offene Bedienstation. |

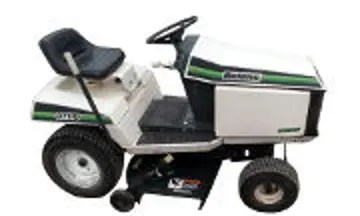

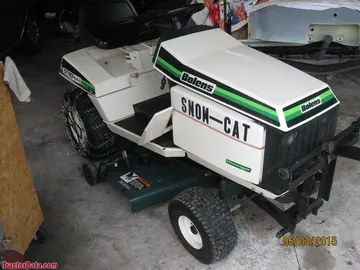

Fotos | |
|---|---|
![]() | |
Bolens 3011H Fotos... |
Kraftentnahme (PTO) | |
|---|---|
Mittel PTO | unabhängig |
Kupplung | elektrisch |
Abmessungen & Reifen | |
|---|---|
Radstand | 45 Zoll
114 cm |
Vorderreifen | 15x6.00-6 |
Hinterreifen | 20x8.00-10 |
Vollständige Abmessungen und Reifen ... | |
Bolens 3011H Anhängesel | |
|---|---|
36" Mittelmontagemähdeck | |
42-Zoll Mittelaufbau-Mähdeck | |
Schneeschleuder | |
Messer | |
Befestigungsdetails ... |
Seriennummern 3011H | |
|---|---|
Standort: | Seriennummernschild auf dem hinteren Kotflügel, unter dem Traktorsitz, auf der linken Seite. |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Batterie Ah | 45 |
