bolens lawn tractors ht 20d
![]() | 1980 - 1981
Große Rahmen SerieGartentraktor | 1980 - 1981 | Große Rahmen-Serie | Gartenfahrzeug |
|---|---|---|---|---|
1980 - 1981 | ||||
Große Rahmen-Serie | ||||
Gartenfahrzeug | ||||
1980 - 1981 | |
|---|---|
Große Rahmen-Serie | |
Gartenfahrzeug |
Produktion | |
|---|---|
Hersteller | Bolens |
Gartenfahrzeug | |
Gebaut in Port Washington, Wisconsin, USA | |
Bolens HT-20D Motor | |
|---|---|
19,9 PS Wisconsin 863cc 2-Zylinder Diesel | |
Kraftstofftank | 5 gal
18,9 L |
Motordetails ... | |
Bolens HT-20D Getriebe | |
|---|---|
hydrostatisch | |
Getriebe Details ... |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Scheibenbremsen | |
Offene Fahrerkabine |
Fotos | |
|---|---|
![]() | |

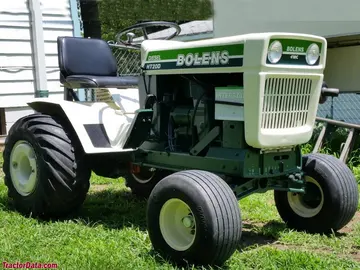

Bolens HT-20D Fotos... |
Traktoranbausystem | |
|---|---|
Hinterer Typ | 0 Optionell |
Kraftentnahme (PTO) | |
|---|---|
Mittel PTO | unabhängig |
Kupplung | manuelle Leerlaufrolle |
Abmessungen & Reifen | |
|---|---|
Radstand | 132 cm
52 Zoll |
Gewicht | 1110 lbs
503 kg |
Vorderreifen | 18x8,50-8 |
Hinterreifen | 26x12-12 |
Vollständige Abmessungen und Reifen ... | |
Bolens HT-20D Anhänge | |
|---|---|
54" Mittelaufbau-Mähdeck | |
Schneeschleuder | |
Messer | |
Befestigungsdetails ... |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 9 |
| 35 (optional) |
Batteriespannung | 12 |
Referenzen | |
|---|---|
![]() | |
Rasenmaschinen veröffentlicht 1981 von Bolens | |
Bolens-Schlepper veröffentlicht im Jahr 1982 | |
Bedienungsanleitung für Großrahmen-Traktoren (552665-5), veröffentlicht 1985 |
