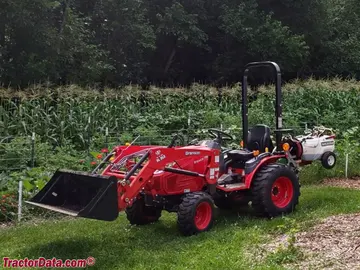

branson 2505h
 | 2020 -
05 SerieKompakter Nutzfahrzeugtraktor | 2020 - | 05-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
2020 - | ||||
05-Serie | ||||
Kompakt-Bau-Traktor | ||||
2020 - | |
|---|---|
05-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Branson (ein Teil von Kukje) |
Kompakt-Bau-Traktor | |
Hergestellt in Südkorea | |
Branson 2505h Motor | |
|---|---|
Yanmar 1.3L 3-Zylinder-Diesel | |
Kraftstofftank | 5,8 gal
22,0 L |
Motordetails ...  | |
Branson 2505h Getriebe | |
|---|---|
hydrostatisch | |
Getriebe Details ...  |
Branson 2505h Leistung | |
|---|---|
Motor (grobe Leistung) | 24,6 PS
13,6 kW |
Zwillingskupplung (angegeben) | 18,8 PS
14,0 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Differentialsperre | mechanische Heck |
Servolenkung | |
Nassbremsen | |
Zwei-stützen-Falt ROPS. | |
Fotos | |
|---|---|
 | |
Branson 2505h Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Heckventile | 2 OptionalOption |
Pumpenleistung | 4,2 gpm
15,9 lpm |
Gesamtstrom | 7,0 gpm
26,5 lpm |
Lenkungsfluss | 2,8 gpm
10,6 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Steuerung | Positionsregelung |
Heckhub (an den Enden) | 1214 Pfund
550 kg |
Heckhub (bei 24"/610mm) | 1101 lbs
499 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540 (1,375) |
Mitte PTO Typ | 2000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 57,5 Zoll
146 cm |
Gewicht | 1638 lbs
742 kg |
Vorderreifen | 6-12 |
Hinterreifen | 9,5-16 |
Vollständige Abmessungen und Reifen ...  | |
Branson 2505h Anbaugeräte | |
|---|---|
60-Zoll Mittelaufbau-Mähdeck | |
Frontlader | |
Bagger | |
Befestigungsdetails ...  |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 40 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
05-Serie - 2505h veröffentlicht im Jahr 2019 von Branson |
