caseih 585
 | 1985 - 1990
85 Utility Serie Utility-Traktor | 1985 - 1990 | 85 Utility-Serie | Bauwagen |
|---|---|---|---|---|
1985 - 1990 | ||||
85 Utility-Serie | ||||
Bauwagen | ||||
1985 - 1990 | |
|---|---|
85 Utility-Serie | |
Bauwagen |
Produktion | |
|---|---|
Hersteller | Case IH |
Bauwagen | |
Gebaut in Doncaster, England | |
Der ursprüngliche Preis betrug 20.000 $ im Jahr 1990 | |
Varianten | |
|---|---|
585 | Nutzfahrzeug |
585-O | Obstgarten |
CaseIH 585 Motor | |
|---|---|
CaseIH 3,4L 4-Zylinder-Diesel | |
Motordetails ...  |
CaseIH 585 Getriebe | |
|---|---|
8-Gang-Synchromesch | |
16-Gang | |
Getriebe Details ...  |
CaseIH 585 Power | |
|---|---|
Motor | 60 PS
44,7 kW |
Zwillingskupplung (angegeben) | 52 PS
38,8 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Servolenkung | |
Zwei-Säulen-ROPS |

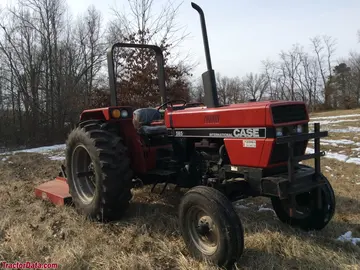

Fotos | |
|---|---|
 | |
CaseIH 585 Fotos...  |
Kapazität | |
|---|---|
Kraftstoff | 20 gal
75,7 L |
Hydrauliksystem | 9 Gallonen
34,1 Liter |
Hydraulik | |
|---|---|
Typ | offen mittig |
Kapazität | 9 Gallonen
34,1 Liter |
Ventile | 1 oder 2 |
Pumpenleistung | 15,1 gpm
57,2 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Heckhub (bei 24"/610mm) | 3210 lbs
1456 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 78 Zoll
198 cm |
Gewicht | 5640 bis 6765 Pfund |
Vorderreifen | 7,50-16 |
Hinterreifen | 16.9-30 |
Vollständige Abmessungen und Reifen ...  | |
585 Seriennummern | |
|---|---|
1985 | 15000 |
1986 | 18000 |
1987 | 19201 |
1988 | 22268 |
1989 | 24954 |
1990 | 27087 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 45 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
85er Serie, veröffentlicht 1985 von CaseIH |
