caseih cs 120

CaseIH CS 120 tractor photo
1997 - 2003 CS SeriesRow-Crop tractor
1997 - 2003
CS Series
Row-Crop tractor
1997 - 2003
CS Series
Row-Crop tractor
1997 - 2003
CS Series
Row-Crop tractor
Production
Manufacturer
CaseIH
Row-Crop tractor
Built in Saint Valentin, Austria
Variants
9115
similar Steyr model
CaseIH CS 120 Engine
Sisu 6.6L 6-cyl diesel
Fuel tank
58.1 gal 219.9 L

79.3 gal*Total capacity with optional 80 liter fuel tank. 300.2 L
Engine details ...

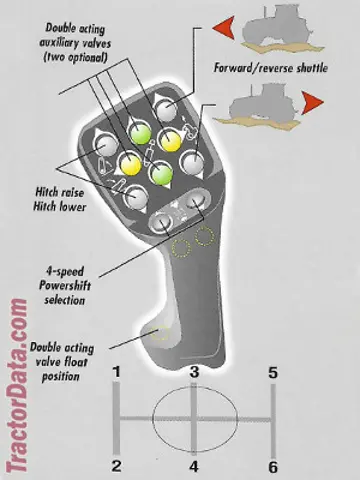

CaseIH CS 120 Transmissions
24-speed four-speed power shift
40-speed creeper
Transmission details ...
CaseIH CS 120 Power
Engine (net)
113.4 hp 84.6 kW
PTO (claimed)
101.6 hp 75.8 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Pressure
2683 psi 185.0 bar
Pump flow
21.1 gpm 79.9 lpm

30.4 gpmOptOptional 115.1 lpm
Tractor hitch
Rear Type
III
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000 (1.375)
Engine RPM
540@2200

540E@1680

1000@2200

1000E@1600
Front PTO Type
1000
Dimensions & Tires
Wheelbase
110.6 inches 280 cm
Weight
11563 lbs 5244 kg
Front tire
540/65R26
Rear tire
600/65R38
Full dimensions and tires ...
