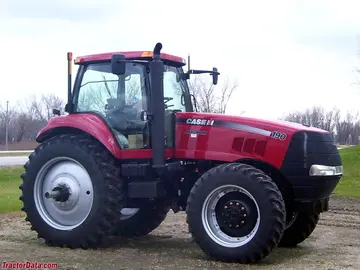

caseih magnum 190
 | 2009 - 2013
Baujahr 2009-20102011-2013
Magnum Serie Reihenkulturtraktor | 2009 - 2013 | Baujahr 2009-20102011-2013 | Magnum Serie | Ackerschlepper |
|---|---|---|---|---|---|
2009 - 2013 | |||||
Baujahr 2009-20102011-2013 | |||||
Magnum Serie | |||||
Ackerschlepper | |||||
2009 - 2013 | |
|---|---|
Baujahr 2009-20102011-2013 | |
Magnum Serie | |
Ackerschlepper |
Produktion | |
|---|---|
Hersteller | Case IH |
Ackerschlepper | |
Gebaut in Racine, Wisconsin, USA | |
CaseIH Magnum 190 Motor | |
|---|---|
FPT 6.7L 6-Zylinder-Diesel | |
Kraftstofftank | 118 Gallonen
446,6 Liter |
Motordetails ...  | |
CaseIH Magnum 190 Getriebe | |
|---|---|
18-Gang-Leistungsschaltung | |
19-Gang-Lastschaltgetriebe | |
stufenloses Getriebe (CVT) | |
Getriebe Details ...  |
CaseIH Magnum 190 Leistung | |
|---|---|
Motor | 190 PS
141,7 kW |
Zwillingskupplung (angegeben) | 165 PS
123,0 kW |
Kraftübertragung (geprüft) | 189,4 PS
141,2 kW |
Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Allradantrieb | |
Lenkung | hydrostatische Kraft |
Differenzial hydraulische Mehrscheibenbremsen | |
Standardkabine mit Klimaanlage. | |
Fotos | |
|---|---|
 | |
CaseIH Magnum 190 Fotos...  |
Hydraulik | |
|---|---|
Typ | Druckflusskompensiert (PFC) |
Ventile | 3 bis 5 |
Gesamtstrom | 39,6 gpm
149,9 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/III |
Hecklift | 12.787 lbs
5800 kg |
| 15.873 lbs (optional)
7199 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 (1,375) |
| 1000 (1,75) |
Abmessungen & Reifen | |
|---|---|
Radstand | 118,3 Zoll
300 cm |
Gewicht | 19.000 lbs
8618 kg |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 150 |
| 200 (optional) |
Referenzen | |
|---|---|
 | |
Magnum 180-210 Traktoren-Serie veröffentlicht im Jahr 2009, von CaseIH | |
Magnum-Serie Traktoren veröffentlicht im Jahr 2011, von CaseIH | |
Magnum-Serie Traktoren Neu 2011 Vorschau veröffentlicht im Jahr 2010, von CaseIH |
