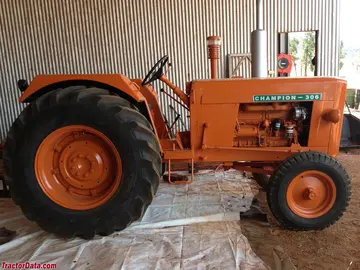

chamberlain 306
 | 1966 - 1969
Champion SeriesStandard-Profil-Traktor | 1966 - 1969 | Champion Serie | Standard-Profil-Traktor |
|---|---|---|---|---|
1966 - 1969 | ||||
Champion Serie | ||||
Standard-Profil-Traktor | ||||
1966 - 1969 | |
|---|---|
Champion Serie | |
Standard-Profil-Traktor |
Produktion | |
|---|---|
Hersteller | Chamberlain |
Standard-Profil-Traktor | |
In Welshpool, Australien gebaut | |
Chamberlain 306 Motor | |
|---|---|
Perkins 5.0L 6-Zylinder Diesel | |
Kraftstofftank | 28,8 gal
109,0 L |
Motordetails ...  | |
Chamberlain 306 Getriebe | |
|---|---|
9-Gang-Getriebe | |
Getriebe Details ...  |
Chamberlain 306 Power | |
|---|---|
Motor | 70 PS
52,2 kW |
Zwillingskupplung (angegeben) | 58 PS
43,3 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Offene Fahrerkabine. Kabine optional. |
Fotos | |
|---|---|
 | |
Chamberlain 306 Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II (optional) |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | live |
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 540@1600 |
Abmessungen & Reifen | |
|---|---|
Gewicht | 7800 lbs
3538 kg |
Vorderreifen | 7,50x18 |
Hinterreifen | 18.4x30 |
Vollständige Abmessungen und Reifen ...  | |
306 Seriennummern | |
|---|---|
1966 | 1001 (306D) |
1967 | 1610 (306D) |
1968 | 2281 (306D) |
1969 | 2957 (306D) |
1970 | 3480 (306D) |
1966 | 5001 (306L) |
1967 | 5198 (306L) |
1968 | 5965 (306L) |
1969 | 6722 (306L) |
1970 | 7466 (306 L) |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Riemenscheibe | |
|---|---|
Durchmesser | 10,25 Zoll
26 cm |
Breite | 6,25 Zoll
15 cm |
Drehzahl | 1600 |
Geschwindigkeit | 3100 Fuß/min
944,88 Meter/min |
