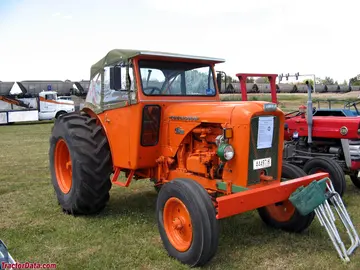

chamberlain champion 9g
 | 1958 - 1966
Champion SeriesStandard-Profil-Traktor | 1958 - 1966 | Champion Serie | Standard-Profil-Traktor |
|---|---|---|---|---|
1958 - 1966 | ||||
Champion Serie | ||||
Standard-Profil-Traktor | ||||
1958 - 1966 | |
|---|---|
Champion Serie | |
Standard-Profil-Traktor |
Produktion | |
|---|---|
Hersteller | Chamberlain |
Standard-Profil-Traktor | |
In Welshpool, Australien gebaut | |
Chamberlain Champion 9G Motor | |
|---|---|
Perkins 4,4-Liter 4-Zylinder Diesel | |
Kraftstofftank | 19,5 Gallonen
73,8 Liter |
Motordetails ...  | |
Chamberlain Champion 9G Getriebe | |
|---|---|
9-Gang-Getriebe | |
Getriebe Details ...  |
Chamberlain Champion 9G Power | |
|---|---|
Motor | 62 PS
46,2 kW |
Anhängerkupplung (angegeben) | 45 PS
33,6 kW |
Riemen (angegeben) | 52 PS
38,8 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Lenkung | mechanisch - Rollenreibklappe |
Offene Fahrerkabine. Kabine optional. | |
Fotos | |
|---|---|
 | |
Chamberlain Champion 9G Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II OptOptional |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Kupplung | 203,2 mm Trockenscheibe |
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 540@1600 |
Abmessungen & Reifen | |
|---|---|
Radstand | 94 Zoll
238 cm |
Gewicht | 7125 lbs
3231 kg |
Vorderreifen | 7,50x18 |
Hinterreifen | 15x28 |
Vollständige Abmessungen und Reifen ...  | |
Champion 9G Seriennummern | |
|---|---|
1958 | 1704 |
1959 | 1804 |
1960 | 2434 |
1961 | 3169 |
1962 | 3822 |
1963 | 4873 |
1964 | 5783 |
1965 | 6912 |
1966 | 8048 |
Endgültig | 8165 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Riemenscheibe | |
|---|---|
Durchmesser | 10,25 Zoll
26 cm |
Breite | 7,25 Zoll
18 cm |
Geschwindigkeit | 3100 Fuß/min
944,88 Meter/min |
Elektrisch | |
|---|---|
Ladesystem | Generator |
Ladespannung | 12 |
Batterien | 2 |
Batteriespannung | 6 |
Referenzen | |
|---|---|
 | |
Champion 9G herausgegeben von Chamberlain |
