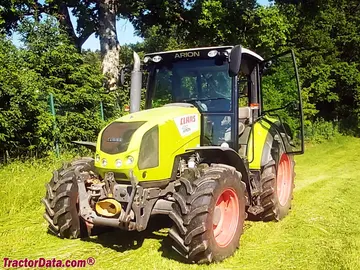

claas arion 420
 | 2009 - 2024
Baujahr 2009-20142014-2024
Arion Serie Reihenanbau-Traktor | 2009 - 2024 | Baujahr 2009-20142014-2024 | Arion-Serie | Ackerschlepper |
|---|---|---|---|---|---|
2009 - 2024 | |||||
Baujahr 2009-20142014-2024 | |||||
Arion-Serie | |||||
Ackerschlepper | |||||
2009 - 2024 | |
|---|---|
Baujahr 2009-20142014-2024 | |
Arion-Serie | |
Ackerschlepper |
Produktion | |
|---|---|
Hersteller | Claas |
Ackerschlepper | |
Varianten | |
|---|---|
420 CIS | Claas Informationssystem |
Claas Arion 420 Motor | |
|---|---|
John Deere 4,5-Liter 4-Zylinder-Diesel | |
Kraftstofftank | 46,2 Gallonen
174,9 L |
Motordetails ...  | |
Claas Arion 420 Getriebe | |
|---|---|
16-Gang-Leistungswechsler | |
Getriebe Details ...  |
Claas Arion 420 Power | |
|---|---|
Motor (Netto) | 100 PS
74,6 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Differentialsperre | elektrohydraulisch |
Servolenkung | |
Nassbremsen | |
Kabine Standard mit verfügbarer Klimaanlage. | |
Fotos | |
|---|---|
 | |
Claas Arion 420 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Druck | 2828 psi
195,0 bar |
Heckventile | 2 bis 4 |
Pumpenleistung | 15,85 gpm
60,0 lpm |
| 25,9 GPM*98L hydraulischer Standardfluss beim CIS-Modell, optional bei anderen
98,0 lpm |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Kupplung | nasse Scheibe |
Heck-PTO Typ | 540/1000 |
| 540/540E/1000/1000E |
Abmessungen & Reifen | |
|---|---|
Radstand | 100,9 Zoll
256 cm |
Gewicht | 10800 lbs
4898 kg |
Vorderreifen | 14.9R24 |
Hinterreifen | 18.4R34 |
Vollständige Abmessungen und Reifen ...  | |
Claas Arion 420 Anhängungen | |
|---|---|
Frontlader | |
Befestigungsdetails ...  |
