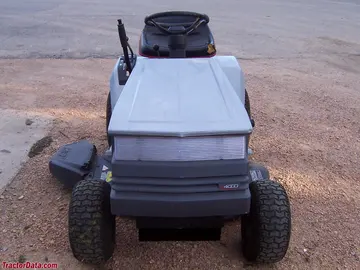

craftsman lawn tractors 917 25479
 | 1991
LT4000 SeriesLawn tractorAYP built | 1991 | LT4000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
1991 | |||||
LT4000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
1991 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | AYP |
Lawn tractor | |
Craftsman 917.25479 Engine | |
|---|---|
12.5HP Tecumseh 357cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Craftsman 917.25479 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Craftsman 917.25479 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Craftsman 917.25479 attachments | |
|---|---|
38" mid-mount mower deck | |
Attachment details ...  |

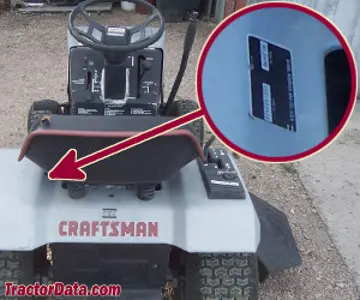

917.25479 Serial Number Location | |
|---|---|
 | |
Serial number plate on rear fender deck, under the tractor seat. |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
