craftsman lawn tractors 917 25772
 | 1994
GT6000 SeriesGarden tractorAYP built | 1994 | GT6000 Series | Garden tractor | AYP built |
|---|---|---|---|---|---|
1994 | |||||
GT6000 Series | |||||
Garden tractor | |||||
AYP built | |||||
1994 | |
|---|---|
GT6000 Series | |
Garden tractor | |
AYP built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | AYP |
Garden tractor | |
Variants | |
|---|---|
25772 | gear |
25773 | hydrostatic |
Craftsman 917.25772 Engine | |
|---|---|
18HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Craftsman 917.25772 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Craftsman 917.25772 attachments | |
|---|---|
44" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |

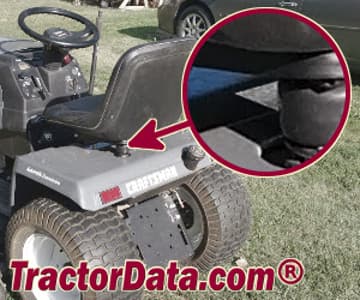

917.25772 Serial Number Location | |
|---|---|
 | |
Serial number decal below the seat on the tractor's rear fender assembly. |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Craftsman Lawn and Garden Rding Equipment published in 1994, by Sears |
