cub cadet lawn tractors 1541
 | 1990 - 1991
Garden tractor | 1990 - 1991 | Garden tractor |
|---|---|---|---|
1990 - 1991 | |||
Garden tractor | |||
1990 - 1991 | |
|---|---|
Garden tractor |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Variants | |
|---|---|
1535 | gear |
1541 | hydro |
Cub Cadet 1541 Engine | |
|---|---|
15HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Cub Cadet 1541 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Dual disc brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 684 lbs
310 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Cub Cadet 1541 attachments | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
46" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
1541 Serial Number Location | |
|---|---|
 | |

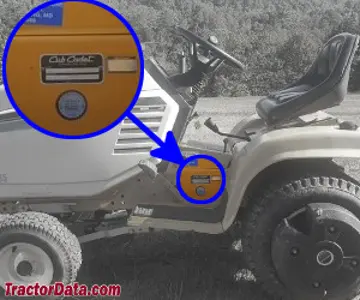

Serial number plate on the left side of the tractor frame, above the foot rest. |
1541 Serial Numbers | |
|---|---|
1990 | 800000 |
1991 | 811672 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Garden Tractors published in 1991, by Cub Cadet | |
1991 Product Line published by Cub Cadet | |
Service Manual Garden Tractors (772-4116) published in 1991 |
