cub cadet lawn tractors 3206
 | 2001 - 2002
3000 SeriesGarden tractor | 2001 - 2002 | 3000 Series | Garden tractor |
|---|---|---|---|---|
2001 - 2002 | ||||
3000 Series | ||||
Garden tractor | ||||
2001 - 2002 | |
|---|---|
3000 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Original price was $5,499 in 2000 | |

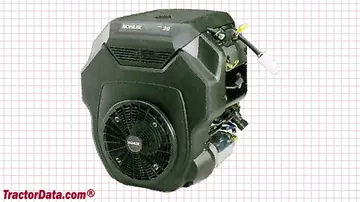

Cub Cadet 3206 Engine | |
|---|---|
20HP Kohler 652cc 2-cyl gasoline | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Cub Cadet 3206 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
External disk brakes | |
Open operator station. | |

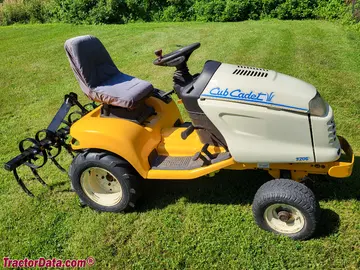

Photos | |
|---|---|
 | |
Cub Cadet 3206 photos...  |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Weight | 803 lbs
364 kg |
Front tire | 16x7.5 |
Rear tire | 24x10.5 |
Full dimensions and tires ...  | |
Cub Cadet 3206 attachments | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
54" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 435 |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 3000 Tractors published in 2001, by Cub Cadet |
