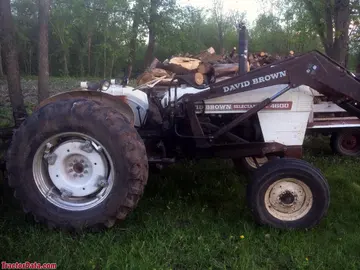

david brown 4600
![]() | 1968 - 1971
Nutzfahrzeug-Traktor | 1968 - 1971 | Bauwagen |
|---|---|---|---|
1968 - 1971 | |||
Bauwagen | |||
1968 - 1971 | |
|---|---|
Bauwagen |
Produktion | |
|---|---|
Hersteller | David Brown |
Bauwagen | |
Gebaut in Meltham Mills, Huddersfield, England | |
Originalpreis | 4.600 $ (1971) |
David Brown 4600 Motor | |
|---|---|
David Brown 2,7L 3-Zylinder-Benzin | |
Motordetails ... |
David Brown 4600 Getriebe | |
|---|---|
6-Gang-Getriebe | |
12-Gang-Getriebe | |
Getriebe Details ... |
David Brown 4600 Leistung | |
|---|---|
Zwillingskupplung (angegeben) | 46 PS
34,3 kW |
Anhängevorrichtung (geprüft) | 38,34 PS
28,6 kW |
Kraftübertragung (geprüft) | 46,05 PS
34,3 kW |
Leistungsprüfung Details ... | |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Endantriebe | Sperrrad |
Differentialsperre | Heckdifferentialsperre Standard |
Lenkung | manuell |
| Leistungshilfe optional |
Expandierende Schuhbremsen | |
Offene Bedienstation. | |
Fotos | |
|---|---|
![]() | |
David Brown 4600 Fotos... |
Kapazität | |
|---|---|
Kraftstoff | 13,75 Gal
52,0 L |
Hydrauliksystem | 6 gal
22,7 L |
Hydraulik | |
|---|---|
Typ | Selectamatic |
Kapazität | 6 gal
22,7 L |
Druck | 2000 psi
137,9 bar |
Ventile | 0 bis 2 |
Pumpenleistung | 7,3 gpm
27,6 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Steuerung | Position und Zugkontrolle |
Heckhub (an den Enden) | 1800 lbs (arbeitend)
816 kg |
| 2500 lbs (statisch)
1134 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | live |
Heck-PTO Typ | 540/1000 |
Motordrehzahl | 540@1823 |
| 1000@2000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 79,75 Zoll
202 cm |
Gewicht | 4300 Pfund
1950 kg |
Vorderreifen | 6,00-16 |
Hinterreifen | 14,9/13-28 |
Vollständige Abmessungen und Reifen ... | |
4600 Seriennummern | |
|---|---|
1969 | 900001 |
1970 | 900312 |
1971 | 900422 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Referenzen | |
|---|---|
![]() | |
4600 Benzin veröffentlicht von David Brown |
