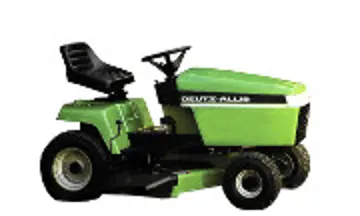

deutz allis lawn tractors 1613h
 | 1990 - 1992
1600 SeriesLawn tractorSimplicity built | 1990 - 1992 | 1600 Series | Lawn tractor | Simplicity built |
|---|---|---|---|---|---|
1990 - 1992 | |||||
1600 Series | |||||
Lawn tractor | |||||
Simplicity built | |||||
1990 - 1992 | |
|---|---|
1600 Series | |
Lawn tractor | |
Simplicity built |
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | Simplicity |
Lawn tractor | |
Variants | |
|---|---|
12.5LTH | similar Simplicity model |
Deutz-Allis 1613H Engine | |
|---|---|
12.5HP Briggs & Stratton 435cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Deutz-Allis 1613H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 660 lbs
299 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Deutz-Allis 1613H attachments | |
|---|---|
38" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Models 1613 & 1616 published in 1990, by Deutz-Allis | |
Operator's Manual 1600 Series (71704545) published in 1989 |
