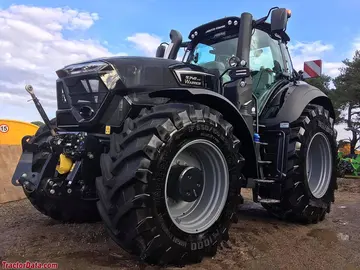

deutz fahr 9340 ttv
 | 2015 -
9 TTV Agrotron Reihen-Traktor | 2015 - | 9 TTV Agrotron Serie | Ackerschlepper |
|---|---|---|---|---|
2015 - | ||||
9 TTV Agrotron Serie | ||||
Ackerschlepper | ||||
2015 - | |
|---|---|
9 TTV Agrotron Serie | |
Ackerschlepper |
Produktion | |
|---|---|
Hersteller | Deutz-Fahr |
Ackerschlepper | |
Deutz-Fahr 9340 TTV Motor | |
|---|---|
Deutz 7,8L 6-Zylinder-Diesel | |
Kraftstofftank | 158.5 Gallonen
599.9 L |
Abgasfluid (DEF) | 14,5 Gallonen
54,9 Liter |
Motordetails ...  | |
Deutz-Fahr 9340 TTV Power | |
|---|---|
Motor (grobe Leistung) | 316 PS
235,6 kW |
Motor (max) | 336 PS
185 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Differentialsperre | automatische Vorder- und Hinterachssperren |
Servolenkung | |
Nassbremsen | |
MaxiVision II Kabine Standard mit Klimaanlage. | |
Fotos | |
|---|---|
 | |
Deutz-Fahr 9340 TTV Fotos...  |
Hydraulik | |
|---|---|
Typ | geschlossenes Mittelkreis-Lastschaltventil |
Ventile | 4 bis 8 |
Pumpenleistung | 42,3 gpm
160,1 lpm |
| 55,5 gpm*Optional.
210,1 lpm |
Traktoranbausystem | |
|---|---|
Hecklift | 26455 lbs
11999 kg |
Frontkraftheber | 11023 Pfund
5000 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Kupplung | elektrohydraulisch |
Heck-PTO Typ | 540E/1000/1000E |
Frontkraftheber | unabhängig *Optional. |
Kupplung | elektrohydraulisch |
Frontzapfwelle Typ | 1000 |
| 1000E |
Abmessungen & Reifen | |
|---|---|
Radstand | 123,4 Zoll
313 cm |
Gewicht | 26455 lbs
11999 kg |
Vorderreifen | 650/65R34 |
Hinterreifen | 710/75R42 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Ladesystem | Lichtmaschine |
Ladeampere | 200 |
Batteriespannung | 12 |
Batterie Ah | 180 |
