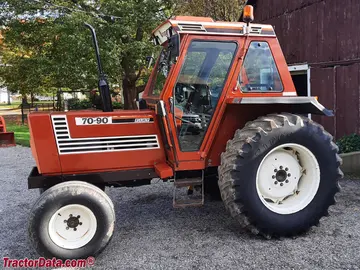

fiat 70 90
 | 1984 - 1992
90er-Serie Nutztraktor | 1984 - 1992 | 90er-Serie | Bauwagen |
|---|---|---|---|---|
1984 - 1992 | ||||
90er-Serie | ||||
Bauwagen | ||||
1984 - 1992 | |
|---|---|
90er-Serie | |
Bauwagen |
Produktion | |
|---|---|
Hersteller | Fiat |
Bauwagen | |
Varianten | |
|---|---|
70-90 | 2WD |
70-90DT | 4x4 |
Fiat 70-90 Motor | |
|---|---|
Fiat 3.6L 4-Zylinder-Diesel | |
Kraftstofftank | 24,6 Gal
93,1 L |
Motordetails ...  | |
Fiat 70-90 Getriebe | |
|---|---|
12-Gang | |
12-Gang-Shuttle | |
20-Gang-Kriecher | |
24-Gang | |
Getriebe Details ...  |
Fiat 70-90 Power | |
|---|---|
Motor | 70 PS
52,2 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Endantriebe | planetarisch |
Differentialsperre | hydraulische Hinterachs |
Servolenkung | |
Hydraulische Scheibenbremsen | |
Kabine Standard mit Heizung. | |
Fotos | |
|---|---|
 | |
Fiat 70-90 Fotos...  |
Hydraulik | |
|---|---|
Druck | 2755 psi
190,0 bar |
Pumpenleistung | 9,1 gpm
34,4 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Hecklift | 7716 Pfund
3499 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Kupplung | 280mm Trockenscheibe |
Heck-PTO Typ | 540 |
| 540/1000 |
Motordrehzahl | 540 bei 2200 |
| 1000@2375 |
Abmessungen & Reifen | |
|---|---|
Radstand | 92,1 Zoll
233 cm |
Gewicht | 6702 bis 7341 Pfund |
Vorderreifen | 7,50-18 |
2WD Hinterreifen | 13,6-38 |
Vollständige Abmessungen und Reifen ...  | |
