ford lawn tractors 140
![]() | 1969 - 1971
GartentraktorJacobsen gebaut | 1969 - 1971 | Gartenfahrzeug | Jacobsen gebaut |
|---|---|---|---|---|
1969 - 1971 | ||||
Gartenfahrzeug | ||||
Jacobsen gebaut | ||||
1969 - 1971 | |
|---|---|
Gartenfahrzeug | |
Jacobsen gebaut |
Produktion | |
|---|---|
Händler | Ford |
Hersteller | Jacobsen |
Gartenfahrzeug | |
Ford 140 Motor | |
|---|---|
14 PS Kohler 512cc 1-Zylinder Benzin | |
Kraftstofftank | 2 gal
7,6 L |
Motordetails ... | |
Ford 140 Getriebe | |
|---|---|
hydrostatisch | |
Getriebe Details ... |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Lenkung | manuell |
Offene Bedienstation. | |
Fotos | |
|---|---|
![]() | |
Ford 140 Fotos... |
Traktoranbausystem | |
|---|---|
Typ | Schleppheck OptOptional |
Kraftentnahme (PTO) | |
|---|---|
Frontkraftheber | unabhängig |
Kupplung | elektrisch |
Abmessungen & Reifen | |
|---|---|
Radstand | 43 Zoll
109 cm |
Gewicht | 785 lbs
356 kg |
Vorderreifen | 16x5.50-8 |
Hinterreifen | 23x8,50-12 |
Vollständige Abmessungen und Reifen ... | |
Ford 140 Anhänge | |
|---|---|
36" Mittelmontagemähdeck | |
42-Zoll Mittelaufbau-Mähdeck | |
48-Zoll Mittelaufbau-Mähdeck | |
Schneeschleuder | |
Messer | |
Befestigungsdetails ... |

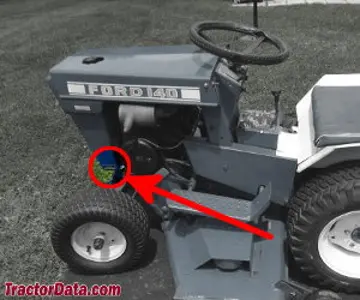

140 Seriennummer Standort | |
|---|---|
![]() | |
Seriennummernschild an der linken Seite des Ford 140, oberhalb der Vorderachse. |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Referenzen | |
|---|---|
![]() | |
Industrielle Traktoren & Gerätespezifikationen 1969 veröffentlicht von Ford | |
Rasen- und Gartentraktoren, veröffentlicht im Jahr 1970, von Ford | |
Rasen- und Gartentraktoren, veröffentlicht im Jahr 1970, von Ford | |
Reparaturanleitung für Motor (SE 3234) veröffentlicht im Jahr 1968 |
