heider d 9 16
 | 1916 - 1929
Standard-Profil-Traktor | 1916 - 1929 | Standard-Profil-Traktor |
|---|---|---|---|
1916 - 1929 | |||
Standard-Profil-Traktor | |||
1916 - 1929 | |
|---|---|
Standard-Profil-Traktor |
Produktion | |
|---|---|
Hersteller | Heider (ein Teil von Rock Island) |
Standard-Profil-Traktor | |
Gebaut in Rock Island, Illinois, USA | |
Heider D 9-16 Motor | |
|---|---|
Waukesha 5.3L 4-Zylinder-Kerosin | |
Kraftstofftank | 21 Gallonen
79,5 Liter |
Motordetails ...  | |
Heider D 9-16 Getriebe | |
|---|---|
7-Gang-Reibradantrieb | |
Getriebe Details ...  |
Heider D 9-16 Power | |
|---|---|
Anhängerkupplung (angegeben) | 9 PS
6,7 kW |
Riemen (angegeben) | 16 PS
11,9 kW |
Pflüge | 2 |
Riemen (geprüft) | 19,54 PS
14,6 kW |
Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Lenkung | manuell |
Vier-Pfosten-Kabine. | |
Fotos | |
|---|---|
 | |

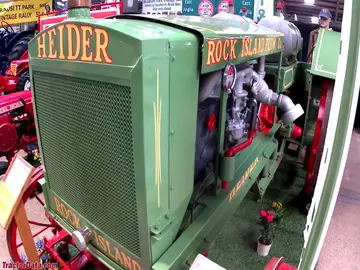

Heider D 9-16 Fotos...  |
Traktoranbausystem | |
|---|---|
Typ | Heider Pflugheber |
Abmessungen & Reifen | |
|---|---|
Radstand | 87 Zoll
220 cm |
Gewicht | 4000 lbs
1814 kg |
Vollständige Abmessungen und Reifen ...  | |
Links | |
|---|---|
Heider D: Informationen an der RIPC-Standort |
