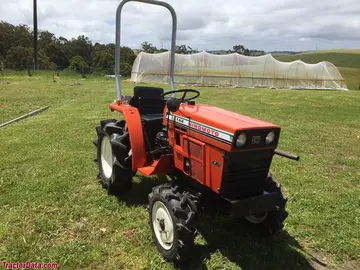

hinomoto c144
 | 1980 - 1985
Concord SerieKompakter Vielseitigkeitstraktor | 1980 - 1985 | Concord Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1980 - 1985 | ||||
Concord Serie | ||||
Kompakt-Bau-Traktor | ||||
1980 - 1985 | |
|---|---|
Concord Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Hinomoto |
Kompakt-Bau-Traktor | |
Gebaut in Japan | |
Varianten | |
|---|---|
C142 | 2WD |
C144 | 4x4 |
Hinomoto C144 Motor | |
|---|---|
Toyosha 0,9L 3-Zylinder-Diesel | |
Kraftstofftank | 3,7 Gallonen
14,0 Liter |
Motordetails ...  | |
Hinomoto C144 Getriebe | |
|---|---|
6-Gang-Getriebe | |
Getriebe Details ...  |
Hinomoto C144 Leistung | |
|---|---|
Motor (grobe Leistung) | 17 PS
12,7 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Differentialsperre | mechanische Hinterachse |
Manuelle Lenkung | |
Mechanische Trommelbremsen | |
Offene Bedienstation. | |
Fotos | |
|---|---|
 | |
Hinomoto C144 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Steuerung | Positionsregelung |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | Getriebe |
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 571@2500 |
| 833@2500 |
Mitte PTO Typ | Riemenscheibe |
Frontkraftheber | unabhängig OptOptional |
Kupplung | elektrisch |
Abmessungen & Reifen | |
|---|---|
Radstand | 50,8 Zoll
129 cm |
Gewicht | 1473 lbs
668 kg |
Vorderreifen | 5-12 |
Hinterreifen | 8-16 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 13 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
C142/C144 veröffentlicht im Jahr 1983, von Hinomoto |
