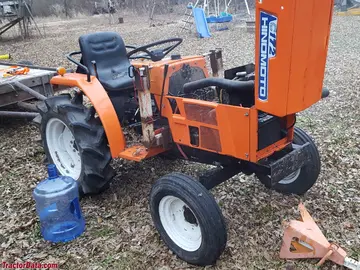

hinomoto c172
 | 1980 - 1985
Concord SeriesCompact Utility tractor | 1980 - 1985 | Concord Series | Compact Utility tractor |
|---|---|---|---|---|
1980 - 1985 | ||||
Concord Series | ||||
Compact Utility tractor | ||||
1980 - 1985 | |
|---|---|
Concord Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Hinomoto |
Compact Utility tractor | |
Built in Japan | |
Variants | |
|---|---|
C172 | 2WD |
C174 | 4WD |
Hinomoto C172 Engine | |
|---|---|
Toyosha 1.0L 3-cyl diesel | |
Fuel tank | 3.7 gal
14.0 L |
Engine details ...  | |
Hinomoto C172 Transmission | |
|---|---|
9-speed synchronized | |
Transmission details ...  |
Hinomoto C172 Power | |
|---|---|
Engine (gross) | 19.7 hp
14.7 kW |
Engine (net) | 17.8 hp
13.3 kW |
PTO (claimed) | 14.8 hp
11.0 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Drum brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |
Hinomoto C172 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.8 inches
129 cm |
Weight | 1280 lbs
580 kg |
Front tire | 4-12 |
Rear tire | 8-18 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | generator |
Charging amps | 12.5 |
Battery volts | 12 |
References | |
|---|---|
 | |
C172/C174 published in 1981, by Hinomoto |
