hinomoto c174
 | 1980 - 1985
Concord SerieKompakter Vielseitigkeitstraktor | 1980 - 1985 | Concord Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1980 - 1985 | ||||
Concord Serie | ||||
Kompakt-Bau-Traktor | ||||
1980 - 1985 | |
|---|---|
Concord Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Hinomoto |
Kompakt-Bau-Traktor | |
Gebaut in Japan | |
Varianten | |
|---|---|
C172 | 2WD |
C174 | 4x4 |
Hinomoto C174 Motor | |
|---|---|
Toyosha 1.0L 3-Zylinder Diesel | |
Kraftstofftank | 3,7 Gallonen
14,0 Liter |
Motordetails ...  | |
Hinomoto C174 Getriebe | |
|---|---|
9-Gang synchronisiert | |
Getriebe Details ...  |
Hinomoto C174 Leistung | |
|---|---|
Motor (grobe Leistung) | 19,7 PS
14,7 kW |
Motor (Netto) | 17,8 PS
13,3 kW |
Zwillingskupplung (angegeben) | 14,8 PS
8,1 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Differentialsperre | mechanische Hinterachse |
Manuelle Lenkung | |
Trommelbremsen | |
Offene Bedienstation. | |
Fotos | |
|---|---|
 | |

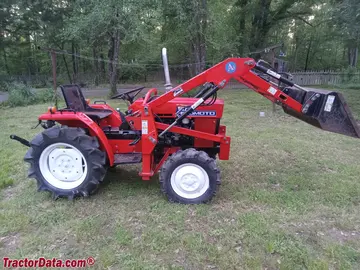

Hinomoto C174 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 (1,375) |
Abmessungen & Reifen | |
|---|---|
Radstand | 50,8 Zoll
129 cm |
Gewicht | 1600 lbs
725 kg |
Vorderreifen | 5.00-14 |
Hinterreifen | 8,00-18 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Generator |
Ladeampere | 12.5 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
C172/C174 veröffentlicht im Jahr 1981, von Hinomoto |
