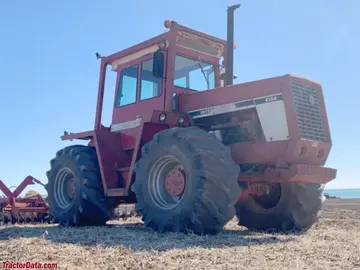

international harvester 4186
 | 1976 - 1978
86 SerieVierradantrieb (4WD)-Traktor | 1976 - 1978 | 86er-Serie | Vierradantriebs-Traktor (4WD) |
|---|---|---|---|---|
1976 - 1978 | ||||
86er-Serie | ||||
Vierradantriebs-Traktor (4WD) | ||||
1976 - 1978 | |
|---|---|
86er-Serie | |
Vierradantriebs-Traktor (4WD) |
Produktion | |
|---|---|
Hersteller | International Harvester |
Vierradantriebs-Traktor (4WD) | |
Gebaut in Rock Island, Illinois, USA | |
Der ursprüngliche Preis betrug 32.500 $ im Jahr 1978 | |
International Harvester 4186 Motor | |
|---|---|
International Harvester 7,1L 6-Zylinder-Diesel | |
Kraftstofftank | 100 gal
378,5 L |
Motordetails ...  | |
Getriebe International Harvester 4186 | |
|---|---|
8-Gang-Getriebe | |
Getriebe Details ...  |
International Harvester 4186 Leistung | |
|---|---|
Anhängerkupplung (angegeben) | 130 PS
96,9 kW |
Zwillingskupplung (angegeben) | 150 PS
111,9 kW |
Anhängevorrichtung (geprüft) | 127,55 PS
95,1 kW |
Kraftübertragung (geprüft) | 150,63 PS
83,0 kW |

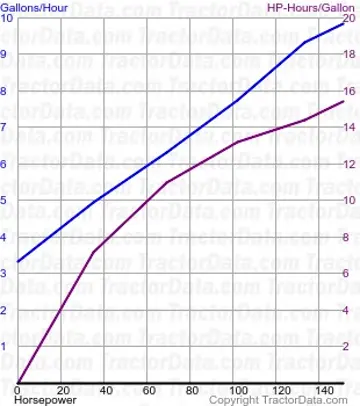

Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Fahren | 4x4 Allradantrieb |
Lenkung | hydraulische Leistung |
Hydraulisch betätigte Sprengbackenbremsen | |
Fahrerkabine Standard | |
Fotos | |
|---|---|
 | |
International Harvester 4186 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Ventile | 2 |
Pumpenleistung | 18 gpm
68,1 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | III/II |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 1000 |
Motordrehzahl | 1000@1159 |
Abmessungen & Reifen | |
|---|---|
Radstand | 102 Zoll
259 cm |
Gewicht | 15900 lbs
7212 kg |
Vorderreifen | 23.1-26 |
Hinterreifen | 23.1-26 |
Vollständige Abmessungen und Reifen ...  | |
Referenzen | |
|---|---|
 | |
1978 Käuferhandbuch veröffentlicht von International Harvester |
