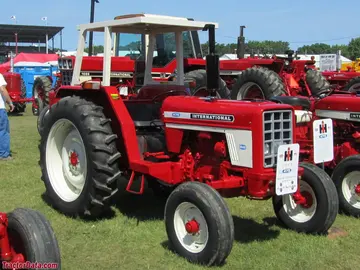

international harvester 475
 | 1974 - 1977
Nutzfahrzeug-Traktor | 1974 - 1977 | Bauwagen |
|---|---|---|---|
1974 - 1977 | |||
Bauwagen | |||
1974 - 1977 | |
|---|---|
Bauwagen |
Produktion | |
|---|---|
Hersteller | International Harvester |
Bauwagen | |
Gebaut in Doncaster, England | |
International Harvester 475 Motor | |
|---|---|
Perkins 3.5L 4-Zylinder Diesel | |
Kraftstofftank | 20,3 Gal
76,8 L |
Motordetails ...  | |
International Harvester 475 Getriebe | |
|---|---|
8-Gang-Schaltung, teilweise synchronisiert | |
16-Gang-Doppelgeschwindigkeit-Powershift | |
Getriebe Details ...  |
International Harvester 475 Leistung | |
|---|---|
Motor | 60 PS
44,7 kW |
Zwillingskupplung (angegeben) | 49 PS
36,5 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Endantriebe | planetarisch |
Differentialsperre | mechanische Hinterachse |
Servolenkung | |
Nassbremsen | |
Öffnungs-Bedienstation. Vier-Säulen-ROPS und Fahrerkabine verfügbar. | |
Fotos | |
|---|---|
 | |
International Harvester 475 Fotos...  |
Hydraulik | |
|---|---|
Pumpenleistung | 11,9 gpm
45,0 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Steuerung | Position und Zugkontrolle |
Hecklift | 3969 lbs
1800 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Kupplung | hydraulische Ölbadbremse |
Heck-PTO Typ | 540/1000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 84,5 Zoll
214 cm |
Gewicht | 5733 Pfund
2600 kg |
Vorderreifen | 6,00-16 |
Hinterreifen | 12,4/11-36 |
Vollständige Abmessungen und Reifen ...  | |

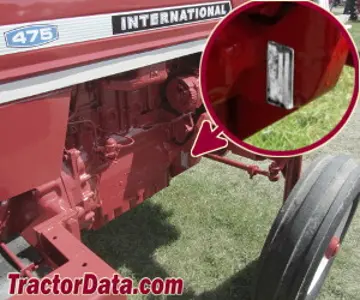

475 Seriennummernstandort | |
|---|---|
 | |
Vordere rechte Achsenstütze. |
Elektrisch | |
|---|---|
Ladesystem | Lichtmaschine |
Ladeampere | 28 |
Batteriespannung | 12 |
Batterie Ah | 95 |
