international harvester 523
 | 1965 - 1972
Nutzfahrzeugtraktor | 1965 - 1972 | Bauwagen |
|---|---|---|---|
1965 - 1972 | |||
Bauwagen | |||
1965 - 1972 | |
|---|---|
Bauwagen |
Produktion | |
|---|---|
Hersteller | International Harvester |
Bauwagen | |
Gebaut in Neuss, Deutschland | |
International Harvester 523 Motor | |
|---|---|
International Harvester 2,9L 3-Zylinder-Diesel | |
Motordetails ...  |
International Harvester 523 Getriebe | |
|---|---|
8-Gang | |
12-Gang-Teil-Powershift | |
Getriebe Details ...  |
International Harvester 523 Leistung | |
|---|---|
Motor | 52 PS
38,8 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Differentialsperre | mechanische Hinterachse |
Manuelle Lenkung | |
Scheibenbremsen | |
Offene Bedienstation. | |
Fotos | |
|---|---|
 | |

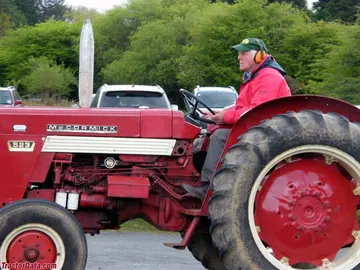

International Harvester 523 Fotos...  |
Kapazität | |
|---|---|
Kraftstoff | 18,5 Gallonen
70,0 Liter |
Hydrauliksystem | 4,3 gal
16,3 L |
Hydraulik | |
|---|---|
Kapazität | 4,3 gal
16,3 L |
Pumpenleistung | 7,5 gpm
28,4 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Hecklift | 3748 lbs
1700 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540 |
| 540/1000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 78,74 Zoll
199 cm |
Gewicht | 5380 bis 6295 Pfund |
Vorderreifen | 6,00-16 |
Hinterreifen | 11x32 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Ladesystem | Generator |
Ladeampere | 10,8 |
Batterie Ah | 135 |
Referenzen | |
|---|---|
 | |
World Wide Farm Equipment Buyer's Guide, veröffentlicht 1968 von International Harvester* | |
523 veröffentlicht von International Harvester | |
523 veröffentlicht von International Harvester | |
523 veröffentlicht von International Harvester | |
*Veröffentlichung enthält bekannte Fehler. |
