international harvester td 5
 | 1959 - 1964
Landwirtschaftlicher Raupenschlepper | 1959 - 1964 | Landwirtschaftlicher Raupentraktor |
|---|---|---|---|
1959 - 1964 | |||
Landwirtschaftlicher Raupentraktor | |||
1959 - 1964 | |
|---|---|
Landwirtschaftlicher Raupentraktor |
Produktion | |
|---|---|
Hersteller | International Harvester |
Landwirtschaftlicher Raupentraktor | |
Fabriken | Melrose Park, Illinois, USA |
| Hamilton, Ontario, Kanada |
Varianten | |
|---|---|
T-5 | Benzin |
TD-5 | Diesel |
International Harvester TD-5 Motor | |
|---|---|
International Harvester 2,4L 4-Zylinder-Diesel | |
Kraftstofftank | 15,9 Gallonen
60,2 L |
Motordetails ...  | |
International Harvester TD-5 Getriebe | |
|---|---|
5-Gang | |
10-Gang-Zweistufen-Leistungswechsel | |
Getriebe Details ...  |
International Harvester TD-5 Leistung | |
|---|---|
Anhängerkupplung (angegeben) | 30,2 PS
22,5 kW |
Riemen (angegeben) | 35 PS
26,1 kW |
Anhängevorrichtung (geprüft) | 29,61 PS
16,4 kW |
Kraftübertragung (geprüft) | 33,25 PS
24,8 kW |

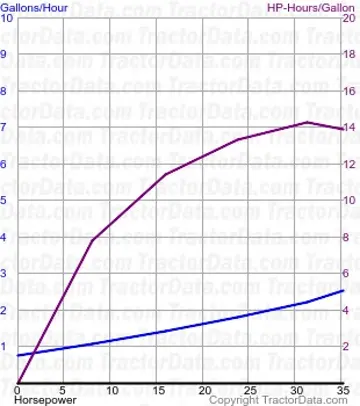

Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Fahren | Kettenfahrzeug |
Offene Bedienstation. | |
Fotos | |
|---|---|
 | |
International Harvester TD-5 Fotos...  |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 980 |
Motordrehzahl | 980@2000 |
Abmessungen & Ketten | |
|---|---|
Gewicht | 6500 lbs
2948 kg |
Ketten | |
Vollständige Abmessungen und Spurweite ...  | |
TD-5 Seriennummern | |
|---|---|
1959 | 501 |
1960 | 1345 |
1961 | 2215 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
