iseki tg5390
 | 2004 - ????
TG-Serie Kompakttraktor | 2004 - ???? | TG-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
2004 - ???? | ||||
TG-Serie | ||||
Kompakt-Bau-Traktor | ||||
2004 - ???? | |
|---|---|
TG-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Iseki |
Kompakt-Bau-Traktor | |
Iseki TG5390 Motor | |
|---|---|
Iseki 1,5L 3-Zylinder-Diesel | |
Kraftstofftank | 10,6 Gallonen
40,1 Liter |
Motordetails ...  | |
Iseki TG5390 Getriebe | |
|---|---|
12-Gang | |
Getriebe Details ...  |
Iseki TG5390 Power | |
|---|---|
Motor | 37,5 PS
28,0 kW |
Zwillingskupplung (angegeben) | 31 PS
23,1 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Differentialsperre | mechanische Hinterachse |
Servolenkung | |
Nassbremsen | |
Zwei-Säulen-ROPS. | |
Fotos | |
|---|---|
 | |

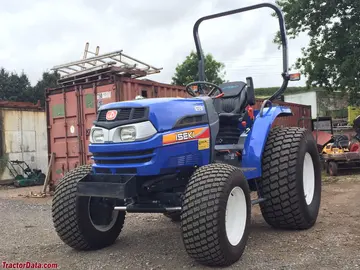

Iseki TG5390 Fotos...  |
Hydraulik | |
|---|---|
Druck | 2276 psi
156,9 bar |
Gesamtstrom | 9,1 gpm
34,4 lpm |
Lenkungsfluss | 4,9 gpm
18,5 lpm |
| 6 gpm (mit Powershift)
22,7 lpm |
Lenkdruck. | 1138 psi
78,5 bar |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Heckhub (an den Enden) | 2,800 lbs
1270 kg |
Heckhub (bei 24"/610mm) | 2.138 lbs
969 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 |
Mitte PTO Typ | 2000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 69,7 Zoll
177 cm |
Gewicht | 2.888 lbs
1309 kg |
Vorderreifen | 7-16 |
Hinterreifen | 12.4-24 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 40 |
Batterie CCA | 630 |
Batteriespannung | 12 |
Batterie Ah | 55 |
Referenzen | |
|---|---|
 | |
Iseki Produktleitfaden veröffentlicht im Jahr 2005 |
