iseki th235
 | 2010 - 2016
TH5-Serie Kompakter Arbeitstraktor | 2010 - 2016 | TH5-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
2010 - 2016 | ||||
TH5-Serie | ||||
Kompakt-Bau-Traktor | ||||
2010 - 2016 | |
|---|---|
TH5-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Iseki |
Kompakt-Bau-Traktor | |
Iseki TH235 Motor | |
|---|---|
Iseki 1,5L 3-Zylinder-Diesel | |
Kraftstofftank | 6,6 Gallonen
25,0 Liter |
Motordetails ...  | |

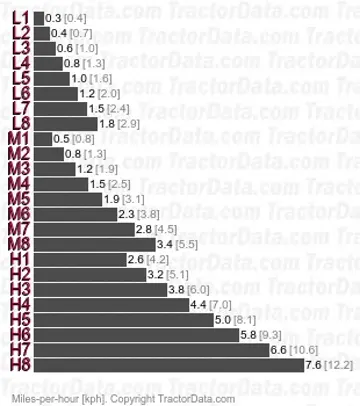

Iseki TH235 Getriebe | |
|---|---|
12-Gang-Getriebe | |
24-Gang-Teil-Leistungswechsel | |
Getriebe Details ...  |
Iseki TH235 Power | |
|---|---|
Motor | 23,2 PS
17,3 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Servolenkung | |
Nassbremsen | |
Zwei-Säulen-Sicherheitsbügel, klappbar. Kabine optional mit Klimaanlage. |
Fotos | |
|---|---|
 | |
Iseki TH235 Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | JIS0 |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 523@2500 |
| 783@2500 |
| 1184@2500 |
Abmessungen & Reifen | |
|---|---|
Gewicht | 1973 bis 2877 Pfund |
Vorderreifen | 6-14 |
Hinterreifen | 9,5-22 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Batterie Ah | 55 |
Referenzen | |
|---|---|
 | |
TH5-Serie - Stilvolle Feldarbeit veröffentlicht im Jahr 2016 von Iseki | |
Bedienungsanleitung TH5-Serie (1765-912-011-0) veröffentlicht im Jahr 2016 |
