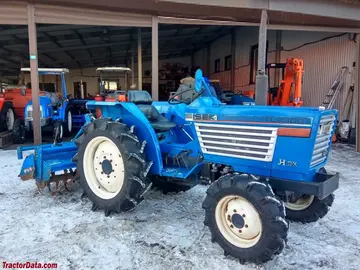

iseki tl2300
 | 1980 - 1985
TL-SerieKompakter Vielzwecktraktor | 1980 - 1985 | TL-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1980 - 1985 | ||||
TL-Serie | ||||
Kompakt-Bau-Traktor | ||||
1980 - 1985 | |
|---|---|
TL-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Iseki |
Kompakt-Bau-Traktor | |
Varianten | |
|---|---|
TL2300F | 4x4 |
Iseki TL2300 Motor | |
|---|---|
Isuzu 1.3L 3-Zylinder-Diesel | |
Kraftstofftank | 7,1 Gallonen
26,9 Liter |
Motordetails ...  | |
Iseki TL2300 Getriebe | |
|---|---|
9-Gang-Getriebe | |
18-Gang-Kriechgang | |
Getriebe Details ...  |
Iseki TL2300 Power | |
|---|---|
Motor | 23 PS
17,2 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Offene Bedienstation. |
Fotos | |
|---|---|
 | |
Iseki TL2300 Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | JIS1 |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 553@2600 |
| 731@2600 |
| 906@2600 |
| 1280@2600 |
Abmessungen & Reifen | |
|---|---|
Radstand | 62,2 Zoll
157 cm |
Gewicht | 2094 bis 2293 Pfund |
Vorderreifen | 4.00-15 |
2WD Hinterreifen | 9,5-24 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
TL veröffentlicht 1984, von Iseki | |
TL1900 - TL2700 |
