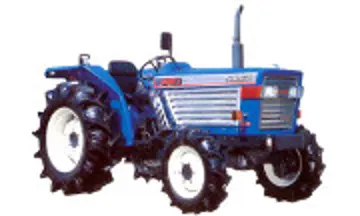

iseki tl3201
 | 1980 - 1985
TL-01 SerieKompakter Vielseitigkeitstraktor | 1980 - 1985 | TL-01-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1980 - 1985 | ||||
TL-01-Serie | ||||
Kompakt-Bau-Traktor | ||||
1980 - 1985 | |
|---|---|
TL-01-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Iseki |
Kompakt-Bau-Traktor | |
Varianten | |
|---|---|
TL3201 | 2WD |
TL3201F | 4x4 |
TL3205 | Allrad-Hochgeschwindigkeit |
Iseki TL3201 Motor | |
|---|---|
Isuzu 1.5L 4-Zylinder-Diesel | |
Kraftstofftank | 10,6 Gallonen
40,1 Liter |
Motordetails ...  | |
Iseki TL3201 Getriebe | |
|---|---|
18-Gang | |
Getriebe Details ...  |
Iseki TL3201 Power | |
|---|---|
Motor | 31,6 PS
23,6 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Offene Bedienstation. |
Traktoranbausystem | |
|---|---|
Hinterer Typ | JIS1 |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 593@2600 |
| 722@2600 |
| 945@2600 |
| 1541@2600 |
Abmessungen & Reifen | |
|---|---|
Radstand | 71,1 Zoll
180 cm |
Gewicht | 2932 bis 3208 Pfund |
Vorderreifen | 6,00-16 |
2WD Hinterreifen | 13.6-26 |
Vollständige Abmessungen und Reifen ...  | |

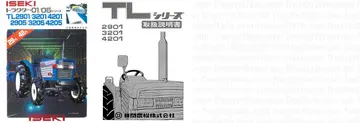

Referenzen | |
|---|---|
 | |
TL290/3201/4201/2905/3205 veröffentlicht im Jahr 1984, von Iseki | |
TL2901 - TL3201 - TL4201 |
