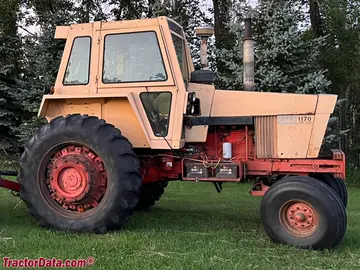

j i case 1170
 | 1970 - 1971
Reihenkulturtraktor | 1970 - 1971 | Ackerschlepper |
|---|---|---|---|
1970 - 1971 | |||
Ackerschlepper | |||
1970 - 1971 | |
|---|---|
Ackerschlepper |
Produktion | |
|---|---|
Hersteller | J.I. Case |
Ackerschlepper | |
Gebaut in Racine, Wisconsin, USA | |
Gesamt gebaut | 1816 |
Der ursprüngliche Preis betrug 12.700 $ im Jahr 1970 | |
J.I. Case 1170 Motor | |
|---|---|
J.I. Case 7.4L 6-Zylinder-Diesel | |
Kraftstofftank | 50 gal
189,2 L |
Motordetails ...  | |
J.I. Case 1170 Getriebe | |
|---|---|
8-Gang | |
12-Gang | |
Getriebe Details ...  |
J.I. Case 1170 Leistung | |
|---|---|
Anhängerkupplung (angegeben) | 110 PS
82,0 kW |
Zwillingskupplung (angegeben) | 122 PS
91,0 kW |
Anhängevorrichtung (geprüft) | 108,15 PS
80,6 kW |
Kraftübertragung (geprüft) | 121,93 PS
90,9 kW |
Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Servolenkung | |
Hydraulische Scheibenbremsen | |
Offene Fahrerposition. Kabine optional mit Klimaanlage. |
Fotos | |
|---|---|
 | |
J.I. Case 1170 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Druck | 2100 psi
144,8 bar |
Ventile | 2 |
Pumpenleistung | 16 gpm
60,6 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II |
Steuerung | Zugmaul-Kraftkontrolle |
Hecklift | 6000 lbs
2721 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 1000 (1,375) |
| 540/1000 (1,375) |
Motordrehzahl | 1000@1900 |
Abmessungen & Reifen | |
|---|---|
Radstand | 110 Zoll
279 cm |
Gewicht | 13800 Pfund
6259 kg |
Vorderreifen | 10.00-16 |
Hinterreifen | 18,4-38 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Ladesystem | Lichtmaschine |
Ladeampere | 55 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
Agri King 1170 Traktor veröffentlicht im Jahr 1970, von J.I. Case | |
Agri King 1170 Traktor veröffentlicht im Jahr 1971, von J.I. Case |
