john deere 510
 | 1966 - 1967
Nutzfahrzeug-Traktor | 1966 - 1967 | Bauwagen |
|---|---|---|---|
1966 - 1967 | |||
Bauwagen | |||
1966 - 1967 | |
|---|---|
Bauwagen |
Produktion | |
|---|---|
Hersteller | John Deere |
Bauwagen | |
Gebaut in Mannheim, Baden-Württemberg, Deutschland | |
John Deere 510 Motor | |
|---|---|
John Deere 2.5L 3-Zylinder Diesel | |
Kraftstofftank | 18,5 Gallonen
70,0 Liter |
Motordetails ...  | |
John Deere 510 Getriebe | |
|---|---|
10-Gang-Schaltung | |
Getriebe Details ...  |
John Deere 510 Power | |
|---|---|
Motor | 39,5 PS
29,5 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Offene Bedienstation. |
Fotos | |
|---|---|
 | |
John Deere 510 Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | live *2-stufige Kupplung |
Heck-PTO Typ | 540/1000 (1,375) |
Motordrehzahl | 540@2250 |
Abmessungen & Reifen | |
|---|---|
Gewicht | 4543 Pfund
2060 kg |
Vorderreifen | 6,50-16 |
Hinterreifen | 12.4/11-32 |
Vollständige Abmessungen und Reifen ...  | |

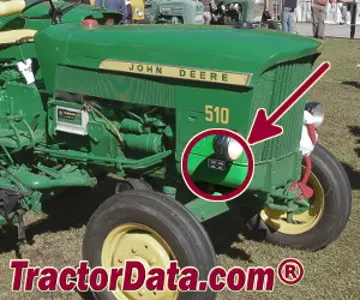

510 Seriennummernstandort | |
|---|---|
 | |
Seriennummernschild auf der rechten Seite des Deere 510 Traktorrahmens, oberhalb der Vorderachse. |
