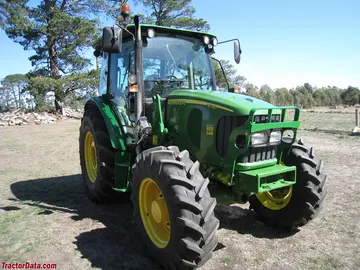

john deere 5720
![]() | 2003 - 2008
Nutzfahrzeugtraktor | 2003 - 2008 | Bauwagen |
|---|---|---|---|
2003 - 2008 | |||
Bauwagen | |||
2003 - 2008 | |
|---|---|
Bauwagen |
Produktion | |
|---|---|
Hersteller | John Deere |
Bauwagen | |
Gebaut in Mannheim, Baden-Württemberg, Deutschland | |
John Deere 5720 Motor | |
|---|---|
John Deere 4,5-Liter 4-Zylinder-Diesel | |
Motordetails ... |
John Deere 5720 Getriebe | |
|---|---|
16-Gang | |
32-Gang | |
Getriebe Details ... |
John Deere 5720 Power | |
|---|---|
Motor | 80 PS
59,7 kW |
Zwillingskupplung (angegeben) | 69 PS
51,5 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Lenkung | hydrostatische Kraft |
Nassbremsen | |
Kabine Standard. Optionale Klimaanlage. | |
Fotos | |
|---|---|
![]() | |
John Deere 5720 Fotos... |
Kapazität | |
|---|---|
Kraftstoff | 30,1 Gallonen
113,9 L |
| 34,6 gal (optional)
131,0 L |
Hydrauliksystem | 13,75 Gal
52,0 L |
Vordere Achse | 4,8 qt
4,5 L |
Vorderradaufnahmen | 0,7 qts
0,7 L |
Hydraulik | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Typ | lastabhängige Druckkompensation | ||||||||
Kapazität | 13,75 Gal
52,0 L | ||||||||
Druck | 2900 psi
200,0 bar | ||||||||
Ventile | bis zu 3 | ||||||||
Gesamtstrom | 14,8 GPM
56,0 LPM | ||||||||
| 17,2 gpm (optional)
65,1 lpm | ||||||||
Öltyp | -10°F [-23°C]↑ : HY-GARD -40°F [-40°C]↓ : Niedrigviskoses HY-GARD -10°F [-23°C]↑ : JDM J20C -40°F [-40°C]↓ : JDM J20D | -10oF [-23oC]↑ | : HY-GARD | -40o↔86oF [-40o↔30oC] | : Niedrige Viskosität HY-GARD | -10oF [-23oC]↑ | : JDM J20C | -40o↔86oF [-40o↔30oC] | : JDM J20D |
-10oF [-23oC]↑ | : HY-GARD | ||||||||
-40o↔86oF [-40o↔30oC] | : Niedrige Viskosität HY-GARD | ||||||||
-10oF [-23oC]↑ | : JDM J20C | ||||||||
-40o↔86oF [-40o↔30oC] | : JDM J20D | ||||||||
-10oF [-23oC]↑ | : HY-GARD |
|---|---|
-40o↔86oF [-40o↔30oC] | : Niedrige Viskosität HY-GARD |
-10oF [-23oC]↑ | : JDM J20C |
-40o↔86oF [-40o↔30oC] | : JDM J20D |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II |
Heckhub (an den Enden) | 8.319 lbs
3773 kg |
Front Anhängerkupplung | optional |
Frontkraftheber | 6.519 lbs
2957 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540/540E |
| 540/540E/1000 |
Frontkraftheber | optional |
Frontzapfwelle Typ | 1000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 88,6 Zoll
225 cm |
Gewicht | 8.157 lbs
3700 kg |
Vorderreifen | 13.6R24 |
Hinterreifen | 16.9R34 |
Vollständige Abmessungen und Reifen ... | |
John Deere 5720 Anhänge | |
|---|---|
Frontlader | |
Befestigungsdetails ... |
5720 Seriennummern | |
|---|---|
Standort: | Hauptrahmen auf der rechten Seite |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 90 |
| 115 (optional) |
Batteriespannung | 12 |
Batterie Ah | 110 |
| 154 (optional) |
Referenzen | |
|---|---|
![]() | |
5020-Serie veröffentlicht im Jahr 2003, von John Deere |
