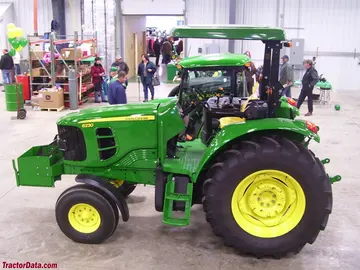

john deere 6230
![]() | 2007 - 2012
6030 Serie | 2007 - 2012 | 6030 Serie |
|---|---|---|---|
2007 - 2012 | |||
6030 Serie | |||
2007 - 2012 | |
|---|---|
6030 Serie |
Produktion | |
|---|---|
Hersteller | John Deere |
Gebaut in Mannheim, Baden-Württemberg, Deutschland | |
Originalpreis | 49.565 $ (2010) |
Varianten | |
|---|---|
6230 Premium | Premium-Kabine und verbesserte Funktionen |
John Deere 6230 Motor | |
|---|---|
John Deere 4,5-Liter 4-Zylinder-Diesel | |
Motordetails ... |

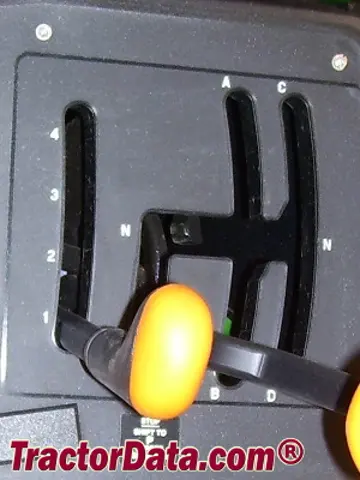

John Deere 6230 Getriebe | |
|---|---|
12-Gang vollständig synchronisiert | |
16-Gang synchronisiert mit Power-Shuttle | |
16-Gang-Teil-Leistungsverschiebung | |
24-Gang-Teil-Leistungswechsel | |
Getriebe Details ... |
John Deere 6230 Power | |
|---|---|
Motor (grobe Leistung) | 95 PS
70,8 kW |
Zwillingskupplung (angegeben) | 75 PS (2007-2009)
55,9 kW |
| 76 PS (2010+)
56,7 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Lenkung | hydrostatische Kraft |
Hydraulische Scheibenbremsen | |
Zweipunkt-Überrollbügel. Kabine optional. | |
Fotos | |
|---|---|
![]() | |
John Deere 6230 Fotos... |
Kapazität | |
|---|---|
Kraftstoff | 43,6 Gallonen
165,0 Liter |
| 48 Gallonen (optional)
181,7 L |
Hydrauliksystem | 13.7 Gallonen
51.9 L |
Hydraulik | |
|---|---|
Typ | Lastschaltende Zentrums-Hydraulik |
| geschlossenes Mitten-Druck- und Durchfluss-kompensiert (optional) |
Kapazität | 13.7 Gallonen
51.9 L |
Druck | 2900 psi
200,0 bar |
Ventile | 1 bis 3 |
Gesamtstrom | 21,1 gpm
79,9 lpm |
| 29 gpm (optional)
109,8 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/III |
Heckhub (bei 24"/610mm) | 4.450 lbs
2018 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540 |
| 540/1000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 94,5 Zoll
240 cm |
Gewicht | 8582 bis 10515 Pfund |
Vorderreifen | 12.4R24 |
Hinterreifen | 18.4R30 |
Vollständige Abmessungen und Reifen ... | |

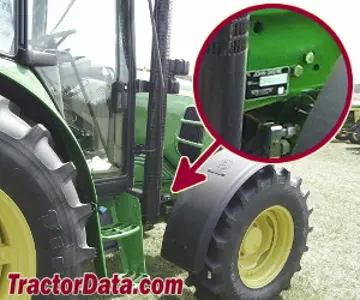

6230 Seriennummernstandort | |
|---|---|
![]() | |
Auf dem Haupttraktorrahmen, rechte Seite, oberhalb der Vorderachse. |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 115 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
![]() | |
6030- und 7030-Serie-Traktoren, veröffentlicht im Jahr 2007, von John Deere | |
Spezialtraktoren veröffentlicht im Jahr 2008 von John Deere | |
Spezialtraktoren veröffentlicht im Jahr 2012, von John Deere |
