john deere 9620rx
![]() | 2016 - 2021
9R SerieGelenk-Raupenfahrzeug | 2016 - 2021 | 9R-Serie | Gelenkter Raupentraktor |
|---|---|---|---|---|
2016 - 2021 | ||||
9R-Serie | ||||
Gelenkter Raupentraktor | ||||
2016 - 2021 | |
|---|---|
9R-Serie | |
Gelenkter Raupentraktor |
Produktion | |
|---|---|
Hersteller | John Deere |
Gelenkter Raupentraktor | |
Gebaut in Waterloo, Iowa, USA | |
Der ursprüngliche Preis betrug 574.786 $ im Jahr 2015 | |
Varianten | |
|---|---|
9620R | Rad-Allrad |
9620RX | Gelenkkettenfahrzeug |
John Deere 9620RX Motor | |
|---|---|
Cummins 14,9-Liter-6-Zylinder-Diesel | |
Kraftstofftank | 400 Gallonen
1514,0 L |
Abgasfluid (DEF) | 22 gal
83,3 L |
Motordetails ... | |
Getriebe John Deere 9620RX | |
|---|---|
18-Gang-Leistungsschaltung | |
Getriebe Details ... |
John Deere 9620RX Leistung | |
|---|---|
Motor (grobe Leistung) | 620 PS
462,3 kW |
Anhängevorrichtung (geprüft) | 494,32 PS
368,6 kW |
Kraftübertragung (geprüft) | 357,89 PS
266,9 kW |
Leistungsprüfung Details ... | |
Mechanisch | |
|---|---|
Fahren | Gelenk-Raupenfahrzeug |
CommandView III Kabine Standard mit Federung und Klimaanlage. AutoTrac-fähig; ISOBUS 11783; JDLink-fähig | |
Fotos | |
|---|---|
![]() | |
John Deere 9620RX Fotos... |
Hydraulik | |
|---|---|
Typ | geschlossenes Mitten-Druck-/Förderstromkompensiert |
Ventile | 4 bis 8 |
Pumpenleistung | 58 gpm
219,5 lpm |
| 115 gpm*Optional, mit zweiter 57GPM Pumpe
435,3 lpm |
SCV-Durchfluss | 35 gpm
132,5 lpm |
| 42 gpm*Durchfluss bei 19,1-mm-Kupplung mit Hochleistungshydraulikoption.
159,0 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | IV/IVN Optional |
Hecklift | 15000 Pfund
6804 kg |
| 20000 lbs
9072 kg |
Anhängerkupplung | Kat. 5 HD |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig OptOptional |
Kupplung | elektrohydraulisch |
Heck-PTO Typ | 1000 (1,75) |
Abmessungen & Ketten | |
|---|---|
Radstand | 163,5 Zoll
415 cm |
Gewicht | 55500 lbs
25174 kg |
30-Zoll-Raupen | |
Vollständige Abmessungen und Spurweite ... | |

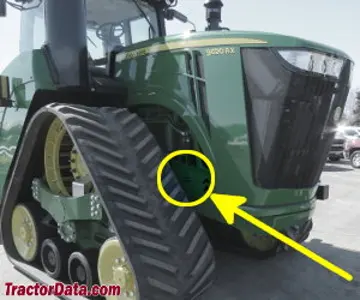

9620RX Seriennummernschild | |
|---|---|
![]() | |
Die Seriennummerntafel des John Deere 9620RX befindet sich auf der rechten Seite des Traktorrahmens, etwas vor der Vorderachse. |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 200 |
| 240 Optional |
Ladespannung | 12 |
Batterien | 4 |
Batterie CCA | 925 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
![]() | |
9RX-Serientraktoren veröffentlicht im Jahr 2015 von John Deere |
