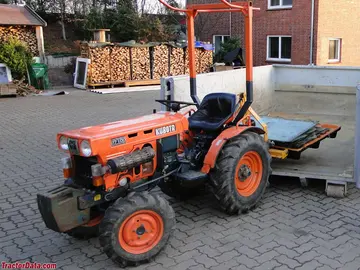

kubota b7100
![]() | 1976 - 1985
Kompakter Vielzwecktractor | 1976 - 1985 | Kompakt-Bau-Traktor |
|---|---|---|---|
1976 - 1985 | |||
Kompakt-Bau-Traktor | |||
1976 - 1985 | |
|---|---|
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Kubota |
Kompakt-Bau-Traktor | |
Gebaut in Japan | |
Der Kubota B7100 war in den späten 1980er Jahren nicht erhältlich, danach war nur noch die hydrostatische Version verfügbar. Die frühen Seriennummern des Modells B7100 begannen mit "B7001", was die Modellbezeichnung für den asiatischen Markt ist. | |
Varianten | |
|---|---|
B7100E | 2WD-Gang |
B7100D | 4WD-Gang |
B7100HST | hydrostatisch |
Kubota B7100 Motor | |
|---|---|
Kubota 0,8L 3-Zylinder Diesel | |
Motordetails ... |
Kubota B7100 Getriebe | |
|---|---|
6-Gang-Getriebe, nicht synchronisiert | |
Getriebe Details ... |
Kubota B7100 Leistung | |
|---|---|
Motor (grobe Leistung) | 16 PS
11,9 kW |
Zwillingskupplung (angegeben) | 13 PS
9,7 kW |
Pflüge | 1 *14 Zoll |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Differentialsperre | mechanische Hinterachse |
Manuelle Lenkung | |
Mechanische Naßscheibenbremsen | |
Offene Fahrerstation. Zweisäuliger, feststehender ROPS verfügbar. | |
Fotos | |
|---|---|
![]() | |
Kubota B7100 Fotos... |
Kapazität | |
|---|---|
Kraftstoff | 3.4 Gallonen
12.9 L |
Hydrauliksystem | 3,6 Gallonen
13,6 Liter |
Hydraulik | |
|---|---|
Typ | offen mittig |
Kapazität | 3,6 Gallonen
13,6 Liter |
Pumpenleistung | 3 gpm
11,4 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Hecklift | 400 lbs
181 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | Getriebe |
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 514@2800 |
| 876@2800 |
| 1498@2800 |
Frontzapfwelle Typ | 2800 |
Abmessungen & Reifen | |
|---|---|
Radstand | 125,4 cm
125 cm |
Gewicht | 1080 lbs
489 kg |
Vorderreifen | 6-12 |
Allrad-Hinterreifen | 8.3-16 |
Vollständige Abmessungen und Reifen ... | |
Kubota B7100 Anhänge | |
|---|---|
Schneeschleuder | |
Messer | |
Frontlader | |
Bagger | |
Befestigungsdetails ... |
Seriennummern B7100 | |
|---|---|
Standort: | Kupplungsgehäuse, linke Seite |
1976 | 10001 |
1977 | 13931 |
1978 | 36646 |
1979 | 54221 |
1980 | 64448 |
1981 | 70678 |
1982 | 74217 |
1983 | 76009 |
1984 | 77309 |
1985 | 78435 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Batterie Ah | 45 |
Referenzen | |
|---|---|
![]() | |
Bedienungsanleitung Modell B2030 Frontschaufel (70050-02211) veröffentlicht im Jahr 1983* | |
Modell B-670 Heckbagger veröffentlicht 1978 von Kubota | |
Modell B670 Baggerlader veröffentlicht 1983, von Kubota | |
B-Serien-Mäher, veröffentlicht 1981, von Kubota | |
Mittig montierte Mäher B/L Serie veröffentlicht im Jahr 1978, von Kubota | |
Diesel B B5100/B6100/B7100 veröffentlicht 1982 von Kubota | |
B7100D veröffentlicht 1981 von Kubota | |
Traktoren und Bagger veröffentlicht im Jahr 1981, von Kubota | |
Traktoren und Bagger veröffentlicht im Jahr 1982, von Kubota | |
*Veröffentlichung enthält bekannte Fehler. |
