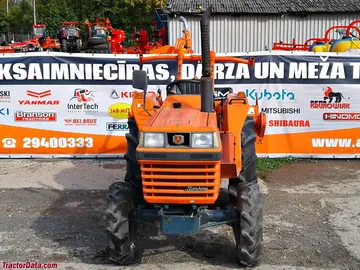

kubota l1 20
![]() | 1983 - 1985
L1 SerieKompakter Nutzfahrzeug-Traktor | 1983 - 1985 | L1-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1983 - 1985 | ||||
L1-Serie | ||||
Kompakt-Bau-Traktor | ||||
1983 - 1985 | |
|---|---|
L1-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Kubota |
Kompakt-Bau-Traktor | |
Varianten | |
|---|---|
L1-20DT | 4x4 |
Kubota L1-20 Motor | |
|---|---|
Kubota 1.4L 3-Zylinder-Diesel | |
Kraftstofftank | 7,7 Gallonen
29,1 L |
Motordetails ... | |
Kubota L1-20 Getriebe | |
|---|---|
16-Gang-Shuttle | |
Getriebe Details ... |
Kubota L1-20 Leistung | |
|---|---|
Motor | 19,7 PS
14,7 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Nassbremsen | |
Offene Bedienstation. |
Fotos | |
|---|---|
![]() | |
Kubota L1-20 Fotos... |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540/770/940/1250 (1,375) |
Abmessungen & Reifen | |
|---|---|
Radstand | 59,1 Zoll
150 cm |
Gewicht | 2050 bis 2161 Pfund |
Vorderreifen | 4.00-15 |
2WD Hinterreifen | 9,5-22 |
Vollständige Abmessungen und Reifen ... | |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Referenzen | |
|---|---|
![]() | |
Bedienungsanleitung L1 (31351-1921-6) |
