kubota l1 24
 | 1983 - 1985
L1 SerieKompakter Nutzfahrzeug-Traktor | 1983 - 1985 | L1-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1983 - 1985 | ||||
L1-Serie | ||||
Kompakt-Bau-Traktor | ||||
1983 - 1985 | |
|---|---|
L1-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Kubota |
Kompakt-Bau-Traktor | |
Varianten | |
|---|---|
L1-24DT | 4x4 |
Kubota L1-24 Motor | |
|---|---|
Kubota 1,5L 3-Zylinder-Diesel | |
Kraftstofftank | 7,7 Gallonen
29,1 L |
Motordetails ...  | |
Kubota L1-24 Getriebe | |
|---|---|
16-Gang-Shuttle | |
Getriebe Details ...  |
Kubota L1-24 Leistung | |
|---|---|
Motor | 23,7 PS
17,7 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Nassbremsen | |
Offene Bedienstation. |

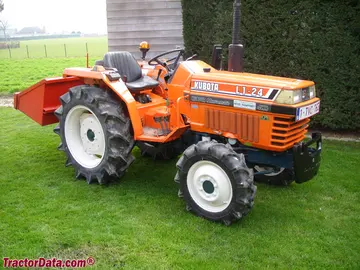

Fotos | |
|---|---|
 | |
Kubota L1-24 Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540/770/940/1250 (1,375) |
Abmessungen & Reifen | |
|---|---|
Radstand | 61 Zoll
154 cm |
Gewicht | 2183 bis 2359 Pfund |
Vorderreifen | 5.00-15 |
2WD Hinterreifen | 11,5-24 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
Bedienungsanleitung L1 (31351-1921-6) |
