kubota l2201
 | 1975 - 1978
L01 SerieKompakter Vielzwecktraktor | 1975 - 1978 | L01-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1975 - 1978 | ||||
L01-Serie | ||||
Kompakt-Bau-Traktor | ||||
1975 - 1978 | |
|---|---|
L01-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Kubota |
Kompakt-Bau-Traktor | |
Gebaut in Japan | |
Varianten | |
|---|---|
L2201 | 2WD |
L2201DT | 4x4 |
Kubota L2201 Motor | |
|---|---|
Kubota 1,1 l 3-Zylinder Diesel | |
Kraftstofftank | 5,8 gal
22,0 L |
Motordetails ...  | |
Kubota L2201 Getriebe | |
|---|---|
16-Gang-Getriebe | |
Getriebe Details ...  |
Kubota L2201 Leistung | |
|---|---|
Motor | 21,7 PS
16,2 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Manuelle Lenkung | |
Offene Bedienstation. |

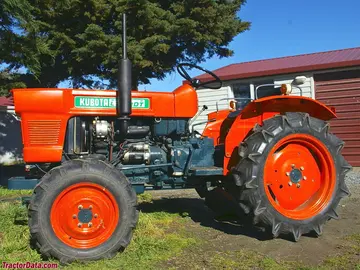

Fotos | |
|---|---|
 | |
Kubota L2201 Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | JIS1 |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 540@2431 |
| 810@2800 |
| 1160@2800 |
| 1480@2800 |
Abmessungen & Reifen | |
|---|---|
Radstand 2WD | 58 Zoll
147 cm |
4x4 Radstand | 58,4 Zoll
148 cm |
Gewicht | 1587 bis 1808 Pfund |
Vorderreifen | 4.00-12 |
2WD Hinterreifen | 8.3/8-22 |
Vollständige Abmessungen und Reifen ...  | |
Standort der Seriennummer L2201 | |
|---|---|
 | |
Seriennummernschild an der linken Seite des L2201-Traktorrahmens, etwas vor dem Kupplungspedal. |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
Ersatzteilhandbuch (Z)L1501, 1801, 2201 (07909-14760) veröffentlicht im Jahr 1979 |
