landini 5560f
 | 1988 - 1995
Obstgarten-/Weinbergtraktor | 1988 - 1995 | Obstgarten-/Weinbergtraktor |
|---|---|---|---|
1988 - 1995 | |||
Obstgarten-/Weinbergtraktor | |||
1988 - 1995 | |
|---|---|
Obstgarten-/Weinbergtraktor |
Produktion | |
|---|---|
Hersteller | Landini |
Obstgarten-/Weinbergtraktor | |
Varianten | |
|---|---|
5560F | Obstgarten |
5560V | Weinberg |
Landini 5560F Motor | |
|---|---|
Perkins 2,5L 3-Zylinder-Diesel | |
Motordetails ...  |
Landini 5560F Getriebe | |
|---|---|

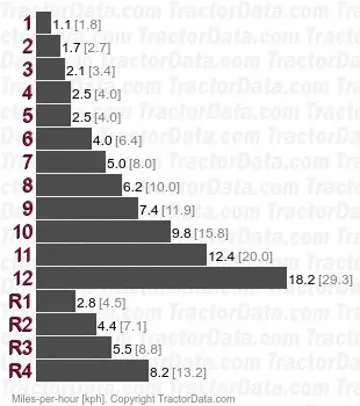

12-Gang-Synchromesh | |
24-Gang-Kriecher | |
Getriebe Details ...  |
Landini 5560F Power | |
|---|---|
Motor | 52,3 PS
39,0 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Servolenkung | |
Mechanische Naßscheibenbremsen | |
Zwei-Pfosten-Mittelmontage-ROPS. |
Kapazität | |
|---|---|
Kraftstoff | 12.15 Gallonen
46.0 L |
Hydrauliksystem | 8,7 Gal
32,9 L |
Hydraulik | |
|---|---|
Kapazität | 8,7 Gal
32,9 L |
Ventile | 2 |
Pumpenleistung | 10,2 Gallonen pro Minute
38,6 Liter pro Minute |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II |
Steuerung | Position und Zugkontrolle |
Hecklift | 5732 lbs
2600 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/750 (1,375) |
Motordrehzahl | 540@1944 |
| 750@1934 |
Abmessungen & Reifen | |
|---|---|
Radstand 2WD | 77 Zoll
195 cm |
4x4 Radstand | 74,7 Zoll
189 cm |
Gewicht | 4630 bis 4916 Pfund |
Vorderreifen | 9.00-10 |
2WD Hinterreifen | 14.9R20 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lucas A115 |
Ladeampere | 45 |
Batteriespannung | 12 |
