leyland 384
 | 1969 - 1972 | 1969 - 1972 |
|---|---|---|
1969 - 1972 | ||
1969 - 1972 |
|---|
Produktion | |
|---|---|
Hersteller | Leyland |
Leyland 384 Motor | |
|---|---|
Leyland 3.8L 4-Zylinder-Diesel | |
Motordetails ...  |
Leyland 384 Getriebe | |
|---|---|
10-Gang | |
Getriebe Details ...  |
Leyland 384 Power | |
|---|---|
Motor (grobe Leistung) | 75 PS
55,9 kW |
Zwillingskupplung (angegeben) | 56 PS (540 U/min)
41,8 kW |
| 62 PS (max)
46,2 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Endantriebe | Sperrrad |
Manuelle Lenkung | |
Mechanische Trockenscheibenbremsen | |
Offene Fahrerkabine. Kabine optional. | |
Fotos | |
|---|---|
 | |

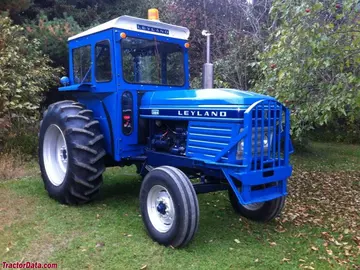

Leyland 384 Fotos...  |
Kapazität | |
|---|---|
Kraftstoff | 18 gal
68,1 L |
Hydrauliksystem | 14,9 Gal
56,4 L |
Hydraulik | |
|---|---|
Typ | offen mittig |
Kapazität | 14,9 Gal
56,4 L |
Pumpenleistung | 7,8 gpm
29,5 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Steuerung | Position und Zugkontrolle |
Hecklift | 4924 Pfund
2233 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 540@1813 |
Abmessungen & Reifen | |
|---|---|
Radstand | 80 Zoll
203 cm |
Gewicht | 5600 Pfund
2540 kg |
Vorderreifen | 7,50-16 |
Hinterreifen | 13.6/12-36 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Ladesystem | Generator |
Ladeampere | 18 |
Batteriespannung | 12 |
Batterie Ah | 120 |
Referenzen | |
|---|---|
 | |
384 veröffentlicht 1971, von Leyland |
