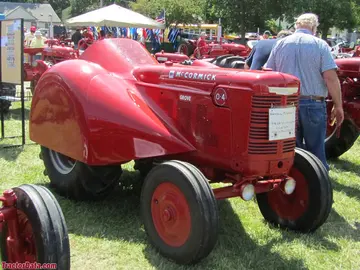

mccormick deering o 4
 | 1940 - 1953
Obstgarten-/Weinbergtraktor | 1940 - 1953 | Obstgarten-/Weinbergtraktor |
|---|---|---|---|
1940 - 1953 | |||
Obstgarten-/Weinbergtraktor | |||
1940 - 1953 | |
|---|---|
Obstgarten-/Weinbergtraktor |
Produktion | |
|---|---|
Hersteller | McCormick-Deering |
Obstgarten-/Weinbergtraktor | |
Gebaut in Rock Island, Illinois, USA | |
Gesamt gebaut | 2.721 |
Varianten | |
|---|---|
Lohnsteuererklärung | Standard |
O-4 | Obstgarten |
OS-4 | Obstgarten, ohne vollständige Metallverkleidung |
McCormick-Deering O-4 Motor | |
|---|---|
International Harvester 2,5L 4-Zylinder-Benzin | |
Kraftstofftank | 17.5 Gallonen
66.2 L |
Hilfsstoff | 0,75 gal
2,8 L |
Motordetails ...  | |
McCormick-Deering O-4 Getriebe | |
|---|---|
5-Gang-Getriebe | |
Getriebe Details ...  |
McCormick-Deering O-4 Leistung | |
|---|---|
Riemen (angegeben) | 24 PS (Kerosin)
17,9 kW |
| 27,5 PS (Benzin)
20,5 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Offene Fahrerkabine |
Fotos | |
|---|---|
 | |
McCormick-Deering O-4 Fotos...  |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 |
Abmessungen & Reifen | |
|---|---|
Radstand | 66,75 Zoll
169 cm |
Gewicht | 4320 lbs
1959 kg |
Vorderreifen | 5.50-16 |
Hinterreifen | 12-26 |
Vollständige Abmessungen und Reifen ...  | |
O-4 Seriennummern | |
|---|---|
Standort: | Linke Seite des Traktors, am Kupplungsgehäuse. |
1940 | OBH501 |
1941 | OBH943 |
1942 | OBH4056 |
1943 | OBH5693 |
1944 | OBH7593 |
1945 | OBH11171 |
1946 | OBH13934 |
1947 | OBH16022 |
1948 | OBH18880 |
1949 | OBH21912 |
1950 | OBH24470 |
1951 | OBH28167 |
1952 | OBH31214 |
1953 | OBH33067 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Riemenscheibe | |
|---|---|
Durchmesser | 9,75 Zoll
24 cm |
Breite | 7,5 Zoll
19 cm |
Drehzahl | 1019 |
Geschwindigkeit | 800 m/min
792.78 Meter/Minute |
Referenzen | |
|---|---|
 | |
Allgemeiner Linienkatalog veröffentlicht im Jahr 1949, von International Harvester |
