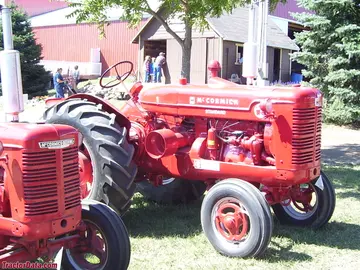

mccormick deering super w 6
 | 1952 - 1954
Standard-Profil-Traktor | 1952 - 1954 | Standard-Profil-Traktor |
|---|---|---|---|
1952 - 1954 | |||
Standard-Profil-Traktor | |||
1952 - 1954 | |
|---|---|
Standard-Profil-Traktor |
Produktion | |
|---|---|
Hersteller | McCormick-Deering (ein Teil von International Harvester) |
Standard-Profil-Traktor | |
Gebaut in Rockford, Illinois, USA | |
Gesamt gebaut | 6.891 |
Varianten | |
|---|---|
Super WD-6 | Dieselmotor |
Super M | Reihenkulturen |
McCormick-Deering Super W-6 Motoren | |
|---|---|
International Harvester 4,3L 4-Zylinder-Benzin | |
International Harvester 4,3L 4-Zylinder-LPG | |
Kraftstofftank | 21 Gallonen
79,5 Liter |
Hilfsstoff | 0.875 gal
3.3 L |
Motordetails ...  | |
McCormick-Deering Super W-6 Getriebe | |
|---|---|
5-Gang-Getriebe | |
10-Gang-Teillastschaltung | |
Getriebe Details ...  |
McCormick-Deering Super W-6 Leistung | |
|---|---|
Anhängevorrichtung (geprüft) | 42,64 PS
31,8 kW |
Riemen (geprüft) | 47,53 PS
35,4 kW |
Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Mechanische Scheibenbremsen | |
Offene Bedienstation. |
Fotos | |
|---|---|
 | |
McCormick-Deering Super W-6 Fotos...  |
Abmessungen & Reifen | |
|---|---|
Radstand | 75,9 Zoll
192 cm |
Gewicht | 2358 kg
5200 lbs |
Vollständige Abmessungen und Reifen ...  | |
Super W-6 Seriennummern | |
|---|---|
Standort: | Kupplungsgehäuse, linke Seite |
1952 | 501 |
1953 | 2908 |
1954 | 8999 |
Endgültig | 9081 |
1954 | 10001 (Super W-6-TA) |
Endgültig | 13006 (Super W-6-TA) |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Riemenscheibe | |
|---|---|
Durchmesser | 11 Zoll
27 cm |
Breite | 7,5 Zoll
19 cm |
Drehzahl | 899 |
Geschwindigkeit | 984.5 ft/min
300.24 Meter/min |
Referenzen | |
|---|---|
 | |
Farmall Letter Series Traktoren von Lee Klancher |
