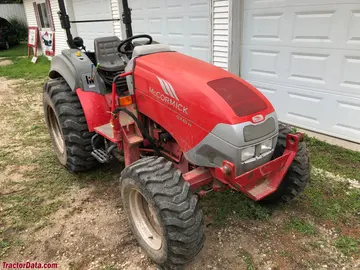

mccormick intl cx75
 | 2003 - 2007
CX-Serie Nutzfahrzeug-Traktor | 2003 - 2007 | CX-Serie | Bauwagen |
|---|---|---|---|---|
2003 - 2007 | ||||
CX-Serie | ||||
Bauwagen | ||||
2003 - 2007 | |
|---|---|
CX-Serie | |
Bauwagen |
Produktion | |
|---|---|
Hersteller | McCormick Intl |
Bauwagen | |
Gebaut in Doncaster, England | |
McCormick Intl CX75 Motoren | |
|---|---|
Perkins 4,2L 4-Zylinder-Diesel | |
Perkins 4,4-Liter 4-Zylinder Diesel | |
Motordetails ...  |
McCormick Intl CX75 Getriebe | |
|---|---|
24-Gang-Teil-Leistungswechsel | |
8-Gang Synchro-Shuttle | |
16-Gang-Teil-Leistungsverschiebung | |
Getriebe Details ...  |
McCormick Intl CX75 Power | |
|---|---|
Motor (Netto) | 73 PS
54,4 kW |
Motor | 73 PS
54,4 kW |
Zwillingskupplung (angegeben) | 60 PS
44,7 kW |
Anhängevorrichtung (geprüft) | 50.2 PS
37.4 kW |
Kraftübertragung (geprüft) | 59,7 PS
44,5 kW |
Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Lenkung | hydrostatische Kraft |
Hydraulische Scheibenbremsen | |
ROPS. Kabine optional. | |
Fotos | |
|---|---|
 | |
McCormick Intl CX75 Fotos...  |
Kapazität | |
|---|---|
Kraftstoff | 41 gal
155,2 L |
Hydrauliksystem | 9,1 Gallonen (2WD)
34,4 Liter |
| 9.7 Gallonen (4WD)
36.7 Liter |
Hydraulik | |
|---|---|
Typ | offen mittig |
Kapazität | 9,1 Gallonen (2WD)
34,4 Liter |
| 9.7 Gallonen (4WD)
36.7 Liter |
Pumpenleistung | 15,85 gpm
60,0 lpm |
Traktoranbausystem | |
|---|---|
Hecklift | 4.498 lbs
2040 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 |
Motordrehzahl | 540@2000 |
| 1000@2000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 92,9 Zoll
235 cm |
Gewicht | 8312 lbs
3770 kg |
Vorderreifen | 7,50-16 |
Hinterreifen | 16.9R34 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 65 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
CX-Serie veröffentlicht im Jahr 2006, von McCormick |
