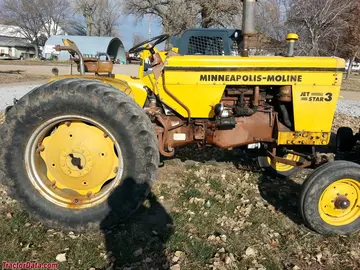

minneapolis moline jet star 3
 | 1964 - 1965
Reihenkulturtraktor | 1964 - 1965 | Ackerschlepper |
|---|---|---|---|
1964 - 1965 | |||
Ackerschlepper | |||
1964 - 1965 | |
|---|---|
Ackerschlepper |
Produktion | |
|---|---|
Hersteller | Minneapolis-Moline |
Ackerschlepper | |
Gebaut in Minneapolis, Minnesota, USA | |
Minneapolis-Moline Jet Star 3 Motoren | |
|---|---|
Minneapolis-Moline 3,4L 4-Zylinder-Benzin | |
Minneapolis-Moline 3,4L 4-Zylinder-Diesel | |
Minneapolis-Moline 3,4L 4-Zylinder-LPG | |
Gastank | 14 Gallonen
53,0 L |
Dieseltank | 14 Gallonen
53,0 L |
Flüssiggas-Kraftstofftank | 22 gal
83,3 L |
Motordetails ...  | |
Minneapolis-Moline Jet Star 3 Getriebe | |
|---|---|
10-Gang-Zweistufen-Leistungswechsel | |
5-Gang-Getriebe | |
Getriebe Details ...  |
Minneapolis-Moline Jet Star 3 Leistung | |
|---|---|
Zwillingskupplung (angegeben) | 44 PS
32,8 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Lenkung | manuell |
Lenkung | Leistung OptOptional |
Scheibenbremsen | |
Offene Bedienstation. | |
Fotos | |
|---|---|
 | |
Minneapolis-Moline Jet Star 3 Fotos...  |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II |
Steuerung | Zugkraftregelung Optional |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540 (1,375) |
| 1000 (1,375) |
Motordrehzahl | 540@1525 |
| 1000@1750 |
Abmessungen & Reifen | |
|---|---|
Radstand | 87,125 Zoll
221 cm |
Gewicht | 3630 bis 3830 Pfund |
Vorderreifen | 5.50-16 |
Hinterreifen | 12.4-28 |
Vollständige Abmessungen und Reifen ...  | |

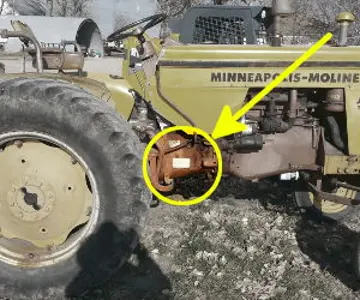

Standort der Seriennummer Jet Star 3 | |
|---|---|
 | |
Rechte Seite des Traktorrahmens, in der Nähe der Bremspedale. |
Jet Star 3 Seriennummern | |
|---|---|
1963 | 28300001 (Gas) |
1964 | 28301001 (Gas) |
1965 | 28301985 (Gas) |
1966 | 28302056 (Gas) |
1967 | 28302844 (Gas) |
1968 | 28303566 (Gas) |
1969 | 28304801 (Gas) |
1970 | 28305086 (Gas) |
Endgültig | 28305335 (Gas) |
1964 | 28400001 (Diesel) |
1965 | 28400051 (Diesel) |
1966 | 28400201 (Diesel) |
1967 | 28400386 (Diesel) |
1968 | 28400467 (Diesel) |
1969 | 28400527 (Diesel) |
1970 | 28400602 (Diesel) |
Endgültig | 28400711 (Diesel) |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Generator |
Batterien | 1 (Gas/Flüssiggas) |
| 2 (Diesel) |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
Jet Star 3 veröffentlicht 1964 von Minneapolis-Moline | |
Käuferhandbuch veröffentlicht 1964 von Minneapolis-Moline |
