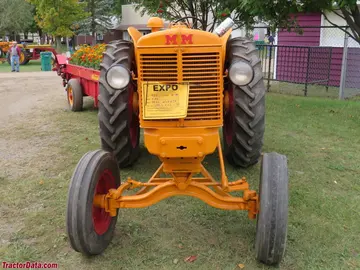

minneapolis moline zas
 | 1949 - 1953
Standard-Profil-Traktor | 1949 - 1953 | Standard-Profil-Traktor |
|---|---|---|---|
1949 - 1953 | |||
Standard-Profil-Traktor | |||
1949 - 1953 | |
|---|---|
Standard-Profil-Traktor |
Produktion | |
|---|---|
Hersteller | Minneapolis-Moline |
Standard-Profil-Traktor | |
Gebaut in Minneapolis, Minnesota, USA | |
Varianten | |
|---|---|
ZAU | vorderes Dreirad |
ZAS | Standardfront |
ZAN | einzelnes Vorderrad |
ZAE | verstellbare breite Front |
ZASI | industriell |
Minneapolis-Moline ZAS Motor | |
|---|---|
Minneapolis-Moline 3,4L 4-Zylinder-Benzin | |
Kraftstofftank | 19 gal
71,9 L |
Motordetails ...  | |

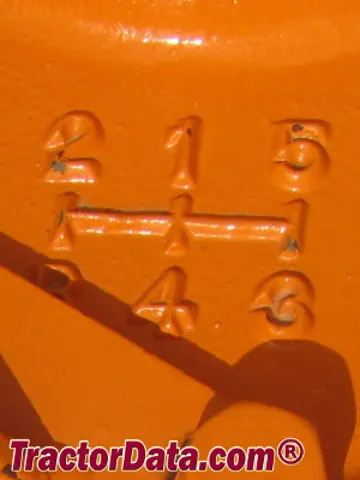

Minneapolis-Moline ZAS Getriebe | |
|---|---|
5-Gang-Getriebe ohne Synchronisation | |
Getriebe Details ...  |
Minneapolis-Moline ZAS Leistung | |
|---|---|
Pflüge | 2-3 (14 Zoll) |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Endantriebe | Stiergang |
Manuelle Lenkung | |
Mechanische Trommelbremsen | |
Offene Bedienstation. | |
Fotos | |
|---|---|
 | |
Minneapolis-Moline ZAS Fotos...  |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 |
Abmessungen & Reifen | |
|---|---|
Gewicht | 3.750 lbs
1701 kg |
Vorderreifen | 5,50x16 |
Hinterreifen | 11x38 |
Vollständige Abmessungen und Reifen ...  | |

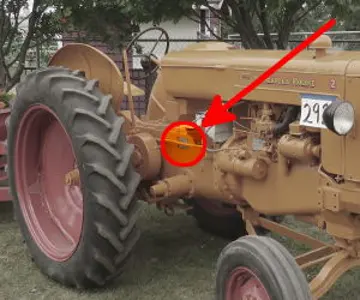

Ort der ZAS Seriennummer | |
|---|---|
 | |
Seriennummernschild an der linken Seite des ZAS-Traktorrahmens vor der Bedienplattform. |
ZAS Seriennummern | |
|---|---|
1949 | 0074900001 |
1950 | 0075000001 |
1950 | 00700001 |
1951 | 00700481 |
1952 | 00701286 |
1953 | 00701911 |
Endgültig | 00702610 |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Riemenscheibe | |
|---|---|
Durchmesser | 15,125 Zoll
38 cm |
Breite | 7 Zoll
17 cm |
Drehzahl | 786 |
Geschwindigkeit | 3.100 ft/min
944,88 Meter/min |
Elektrisch | |
|---|---|
Boden | Radstand |
Ladesystem | Generator |
Batteriespannung | 6 |
Referenzen | |
|---|---|
 | |
Verkaufsbroschüre veröffentlicht 1952 von Minneapolis-Moline | |
Die neuen "Z" Traktoren, veröffentlicht 1949, von Minneapolis-Moline |
