mtd lawn tractors 460
![]() | 1968 - 1974
Rasentraktor | 1968 - 1974 | Rasen-Traktor |
|---|---|---|---|
1968 - 1974 | |||
Rasen-Traktor | |||
1968 - 1974 | |
|---|---|
Rasen-Traktor |
Produktion | |
|---|---|
Hersteller | MTD |
Rasen-Traktor | |
Der ursprüngliche Preis betrug 365 $ im Jahr 1968 | |

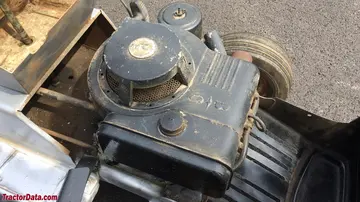

MTD 460 Motoren | |
|---|---|
7 PS Briggs & Stratton 275cc 1-Zylinder-Benzinmotor | |
8HP Briggs & Stratton 318cc 1-Zylinder-Benzinmotor | |
Motordetails ... |
MTD 460 Getriebe | |
|---|---|
3-Gang-Getriebe | |
4-Gang-Getriebe | |
5-Gang CVT | |
Getriebe Details ... |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Offene Bedienstation. |

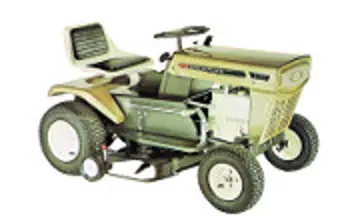

Fotos | |
|---|---|
![]() | |
MTD 460 Fotos... |
Kraftentnahme (PTO) | |
|---|---|
Mittel PTO | unabhängig |
Kupplung | manuell |
Abmessungen & Reifen | |
|---|---|
Gewicht | 144 kg
318 lbs |
Vorderreifen | 15x6-6 |
Hinterreifen | 16x6.50-8 |
Vollständige Abmessungen und Reifen ... | |
MTD 460 Anhänge | |
|---|---|
30-Zoll mittigem Aufbausmähwerk | |
Messer | |
Befestigungsdetails ... |
460 Seriennummern | |
|---|---|
1968 | 138-460 (Modellcode) |
1969 | 139-460 (Modellcode) |
1970 | 140-460 (Modellcode) |
1971 | 141-460 (Modellcode) |
1972 | 142-460 (Modellcode) |
1973 | 143-460 (Modellcode) |
1974 | 144-460A (Modellcode) |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Referenzen | |
|---|---|
![]() | |
Betriebs- und Wartungsanleitungen 132-460, 132-465, 132-470, 132-475 (770-3546) veröffentlicht im Jahr 1972 | |
Reitmäher- und Traktoranhänge veröffentlicht im Jahr 1971 von MTD | |
Reitmäher- und Traktoranhänger, veröffentlicht 1972 von MTD | |
Die '68er Aktionslinie, veröffentlicht 1968, von MTD | |
Die führende Linie '70, veröffentlicht 1970 von MTD | |
Top Flite für '74 veröffentlicht 1974, von MTD |
